ATF13-2P-BM11

$4.00

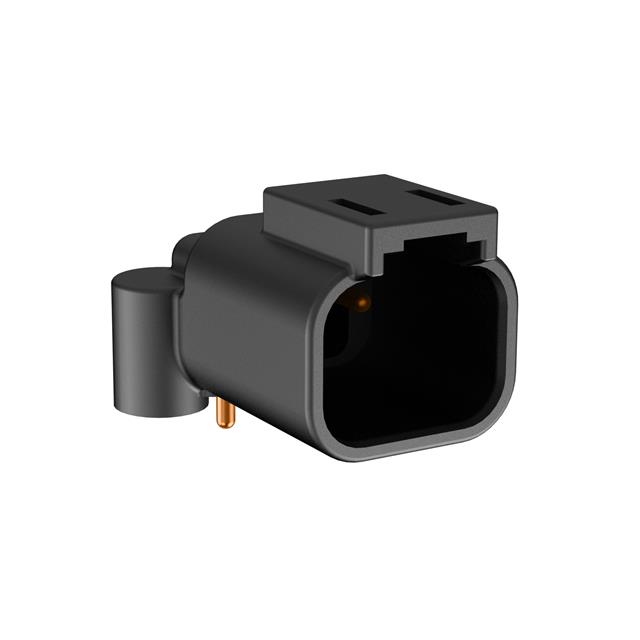

Description：BOARD MOUNT HEADER, RIGHT ANGLE,
Series：BoardLock™ AT
Mfr：Amphenol Sine Systems Corp
Package：Bulk

SKU:c1e5f3362f3a Category: Headers, Male Pins Brand: Amphenol Sine Systems Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ATF13-2P-BM11 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol Sine Systems Corp. Its product description is BOARD MOUNT HEADER, RIGHT ANGLE,. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for ATF13-2P-BM11

Description：BOARD MOUNT HEADER, RIGHT ANGLE,
Series：BoardLock™ AT
Mfr：Amphenol Sine Systems Corp
Package：Bulk
Connector Type：Receptacle
Contact Type：Male Pin
Pitch - Mating：0.213" (5.40mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：-
Insulation Height：0.709" (18.00mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：Mounting Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：IP67 - Dust Tight, Waterproof
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：13A
Voltage Rating：250VDC

Headers, Male Pins datasheet and documents for ATF13-2P-BM11

ATF13-2P-BM11

Headers, Male Pins Overview

The ATF13-2P-BM11 is a right-angle receptacle connector from the BoardLock family, manufactured by Amphenol Sine Systems Corp. It features a 2-position configuration with screw boss termination and flangeless snap-fit design. The component is rated IP67 for dust-tight and waterproof operation, ensuring reliability in harsh environments. Designed for automotive duty, it supports power or data signal applications within a compact, low-profile, and lightweight housing.

Headers, Male Pins Feature Summary

IP67 rating ensures dust-tight and waterproof operation
BoardLock family with screw boss termination
Compact, durable, low-profile, and lightweight design

Headers, Male Pins Applications

Automotive duty applications
Power signal transmission
Data signal applications

Headers, Male Pins Procurement Notes

Verify that the specific part number ATF13-2P-BM11 matches the required 2-position right-angle receptacle configuration. Confirm IP67 sealing requirements are met for the intended environment. Ensure compatibility with BoardLock mounting standards and screw boss termination methods before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust environmental protection and secure board mounting. The IP67 rating makes it suitable for harsh conditions. Consider the right-angle form factor for space-constrained layouts. Verify that the 2-position count aligns with circuit requirements.

Headers, Male Pins Part Context

This part belongs to the BoardLock series, which includes flangeless, snap-fit, or self-threading options. It is designed for feed-through-power connector applications. The series supports flex and static track configurations, serving general equipment and industrial sectors.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer catalogs for equivalent BoardLock series components if replacement is necessary.
