ATFC-0402-5N6B-T

Fixed Inductors Overview

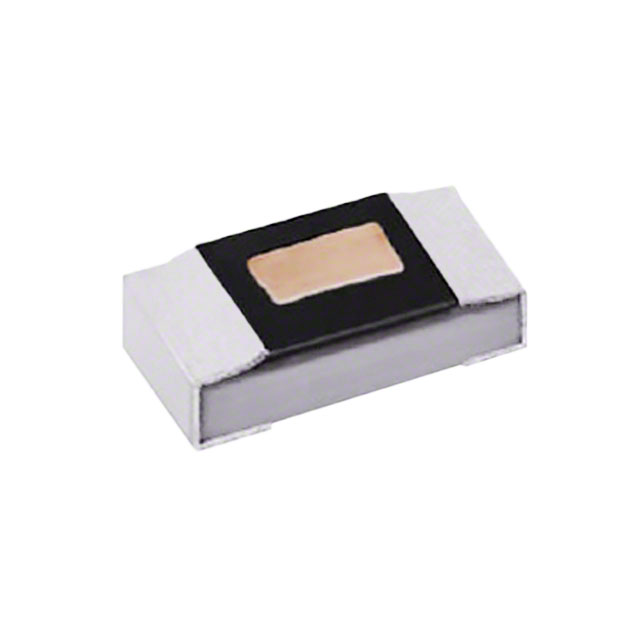

The ATFC-0402-5N6B-T is a fixed thin film chip inductor manufactured by Abracon LLC, designed for surface-mount applications. It features an unshielded construction with a ceramic core and operates within a temperature range of -45°C to +85°C. The component provides an inductance of 5.6 nH with a tolerance of ±0.1 nH. It supports a maximum DC current of 280 mA and exhibits a maximum DC resistance of 850 mOhms. Key electrical characteristics include a minimum Q factor of 13 at 500 MHz and a self-resonant frequency of 6 GHz. The physical dimensions conform to the standard 0402 (1005 metric) package.

Fixed Inductors Feature Summary

• Utilizes thin film technology on a ceramic core for stable RF performance
• Unshielded design suitable for compact high-frequency circuit layouts
• Optimized for low impedance with minimal DC resistance

Fixed Inductors Applications

• RF matching networks
• High-frequency filtering circuits
• Impedance matching in wireless communication modules

Fixed Inductors Procurement Notes

Verify the specific suffix 'B' indicates the precise 5.6 nH value and ±0.1 nH tolerance. Confirm RoHS compliance status as per the latest manufacturer documentation. Ensure the ordering quantity matches available packaging options such as cut tape or reel. Cross-reference the DigiKey part number 535-10382 for accurate sourcing details.

Fixed Inductors Selection Notes

Select this component when a precise 5.6 nH inductance is required for RF applications. The 0402 footprint allows for dense PCB placement. Consider the 280 mA current rating against circuit requirements. The 6 GHz self-resonant frequency ensures usability in higher frequency bands. Verify thermal constraints align with the -45°C to +85°C operating range.

Fixed Inductors Part Context

This part belongs to the ATFC-0402 series of thin film RF inductors from Abracon. These components are engineered for radio frequency applications where stability and precision are critical. The series offers various inductance values in a standardized SMD package, facilitating easy integration into modern electronic designs requiring small form factors.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 5.6 nH inductance, 0402 package, and thin film construction. Verify equivalent DC resistance and current ratings. Check for compatible self-resonant frequencies to ensure RF performance integrity. Consult manufacturer cross-reference lists for validated alternatives.
