ATGGLTEW84018-2.0BP

Antennas RF Overview

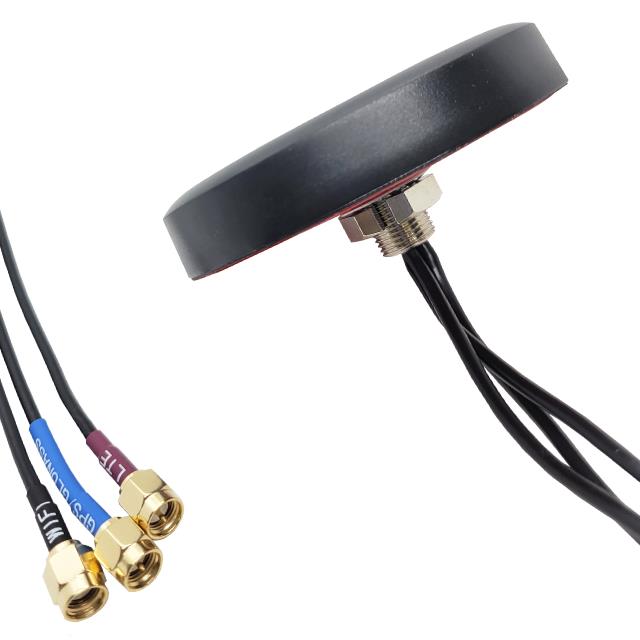

The ATGGLTEW84018-2.0BP is a multi-band RF antenna module designed for integrated wireless communication applications. It supports GNSS, GPS, GLONASS, 4G LTE, GSM, and Wi-Fi frequency bands within a single compact unit. The device features a mechanical screw mounting interface with dimensions of 18 mm in height and 84 mm in diameter. Electrical connectivity is provided via RP-SMA or SMA male connectors. The antenna delivers a gain of 3 dBi and utilizes Right-Hand Circular Polarization (RHCP) to ensure reliable signal reception across the specified operational bands.

Antennas RF Feature Summary

• Integrated support for multiple wireless protocols including GNSS, GPS, GLONASS, 4G LTE, GSM, and Wi-Fi
• Mechanical design featuring a screw mount interface for secure installation
• Utilizes Right-Hand Circular Polarization (RHCP) for optimized signal performance
• Equipped with RP-SMA or SMA male connector options for flexible integration

Antennas RF Applications

• IoT gateways requiring combined cellular and positioning capabilities
• Vehicle tracking and telematics systems
• M2M communication modules
• Smart city infrastructure nodes

Antennas RF Procurement Notes

Verify the specific connector type required for your application, as the model designation may correspond to either RP-SMA or SMA interfaces. Confirm that the mechanical mounting dimensions align with your enclosure design. Ensure that the supported frequency bands match your regional regulatory requirements and network standards. Request the official datasheet from YIC to validate electrical specifications before finalizing component selection.

Antennas RF Selection Notes

Select this component when a single antenna solution is needed to reduce board space and simplify assembly for devices utilizing both cellular data and satellite navigation. Consider the mechanical constraints of the screw mount interface during the enclosure design phase. Evaluate the cable length requirements, as custom lengths are available but may affect overall system integration. Ensure compatibility with the host device's RF front-end matching circuits for optimal efficiency across all supported bands.

Antennas RF Part Context

This part belongs to the YIC ATGGLTEW series of MIMO combo antennas. These components are engineered to consolidate multiple wireless functions into a unified hardware platform. The series targets applications where space is limited and multiple radio technologies must operate simultaneously without interference. The design focuses on maintaining high performance across diverse frequency ranges while providing robust mechanical stability for various deployment environments.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the source documentation. Verify compatibility with existing RF layouts if considering alternative multi-band antennas from other manufacturers.
