Product Detailed Parameters
- Description：IC REG BUCK ADJ 600MA SOT23-6
- Series：-
- Mfr：Analog Technologies, Inc.
- Package：Strip
- Function：Step-Down
- Output Configuration：Positive
- Topology：Buck
- Output Type：Adjustable
- Number of Outputs：1
- Voltage - Input (Min)：5V
- Voltage - Input (Max)：42V
- Voltage - Output (Min/Fixed)：0.8V
- Voltage - Output (Max)：20V
- Current - Output：600mA
- Frequency - Switching：1.2MHz
- Synchronous Rectifier：Yes
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Surface Mount
- Package / Case：SOT-23-6
- Supplier Device Package：SOT-23-6
- Grade：-
- Qualification：-
Download product information
Overview

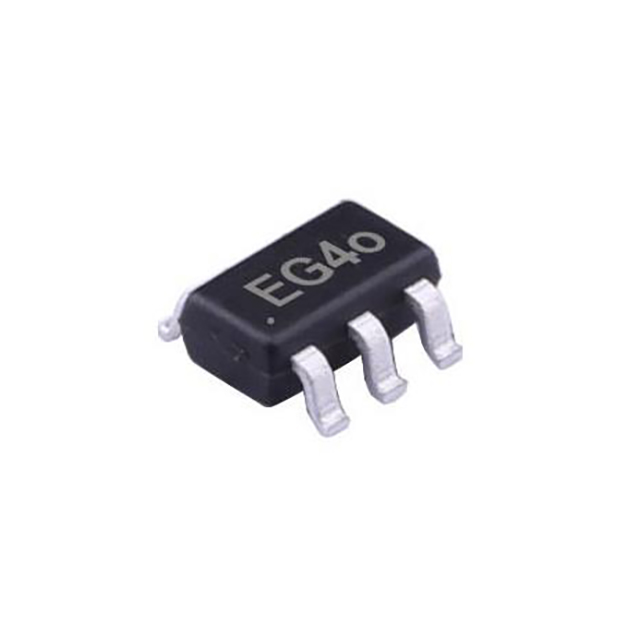

The ATI2934 is a PWM step-down DC/DC converter manufactured by Analog Technologies, Inc. It functions as a buck switching regulator IC with a positive adjustable output voltage range starting from 0.8V for a single output channel. The device supports an output current of up to 600mA and utilizes a SOT-23-6 surface mount package. It operates within a temperature range of -40°C to +85°C.
Feature Summary
- PWM step-down DC/DC converter architecture
- Positive adjustable output voltage capability
- Single output configuration
Applications
- Buck switching regulator implementations
- Portable electronic power systems
- General purpose DC-to-DC conversion
Procurement Notes
Verify the manufacturer designation carefully, as Analog Technologies, Inc. is distinct from major semiconductor firms like Analog Devices. Confirm the specific datasheet version matches the required electrical characteristics. Ensure the component source is authorized to avoid counterfeit parts in this market segment.
Selection Notes
Select this component when a compact, single-output buck converter is required. The SOT-23-6 package suits space-constrained designs. Verify that the 600mA output current meets the load requirements. Check the input voltage range against the application's supply specifications before integration.
Part Context
This part belongs to the family of switching regulators produced by Analog Technologies, Inc. It serves as a cost-effective solution for low-power DC-DC conversion needs. The company focuses on various analog and mixed-signal integrated circuits for consumer and industrial electronics applications.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other SOT-23-6 buck converters only after verifying pin compatibility and electrical parameters.
