ATLTE-20144-2.0BT

Antennas RF Overview

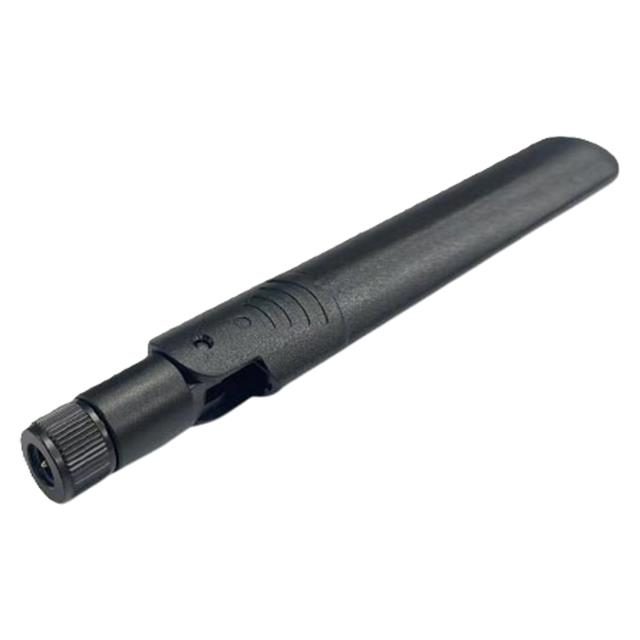

The YIC ATLTE-20144-2.0BT is a terminal antenna designed for 4G, 3G, and 2G communication systems. It provides a gain of 2 dBi. The device operates across two primary frequency ranges: 700 to 960 MHz and 1710 to 2700 MHz. Voltage Standing Wave Ratio (VSWR) specifications are defined as less than or equal to 4.0 within the 700–960 MHz band and less than or equal to 3.5 within the 1710–2700 MHz band.

Antennas RF Feature Summary

• Supports multi-standard connectivity including 4G LTE, 3G, and 2G protocols.

Antennas RF Applications

• 4G/LTE terminal devices
• 3G mobile terminals
• 2G communication equipment

Antennas RF Procurement Notes

Verify the specific connector type and physical dimensions against the mechanical drawings in the official datasheet before integration. Confirm that the VSWR limits meet the system requirements for both the low-band (700-960 MHz) and high-band (1710-2700 MHz) operations. Ensure environmental ratings align with the intended deployment conditions.

Antennas RF Selection Notes

Select this component when a compact 2 dBi gain solution is required for multi-band 2G/3G/4G terminals. Consider the VSWR performance thresholds if strict signal integrity is needed in the lower frequency range. Evaluate form factor constraints relative to other YIC terminal antennas such as the ATLTE-13196 series.

Antennas RF Part Context

This part belongs to the YIC ATLTE series of external RF antennas. It is categorized under frequency control products and RF antennas. The manufacturer, Yuechung International Corp., produces these components for wireless communication applications. The product line includes various gain and frequency configurations for different terminal needs.

Antennas RF Replacement Considerations

The ATLTE-13196-3.0BT offers higher gain (3 dBi) but may have different physical characteristics. Verify compatibility regarding connector type and mounting style before substitution.
