ATM13-12PA-BM04

Headers, Male Pins Overview

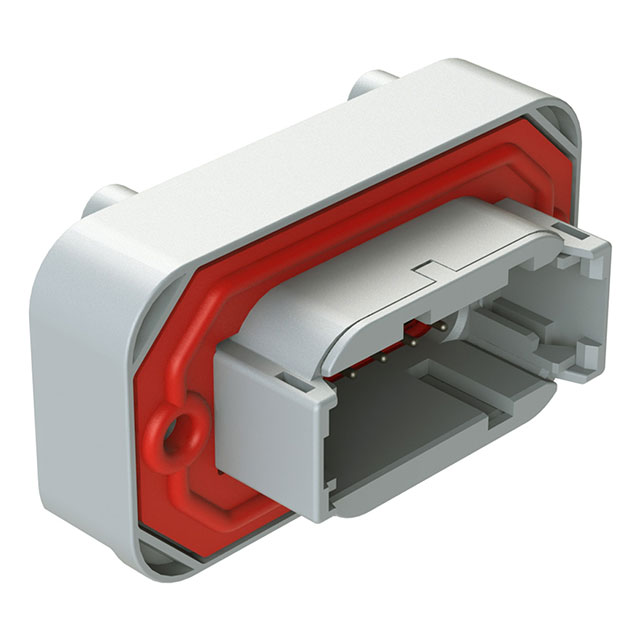

The ATM13-12PA-BM04 is a 12-position rectangular connector receptacle from the Amphenol Sine Systems AT Series™ and BoardLock™ families. It features right-angle panel mount installation with a flange, utilizing solder pin termination for PCB connection. The housing is gray thermoplastic, rated for -55°C to +125°C operating temperatures. Contacts are tin-plated copper alloy, supporting wire gauges from 20 AWG to 14 AWG. This component provides IP67 ingress protection and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• BoardLock™ technology ensures secure board retention
• Sealed design with IP67 environmental protection
• Right-angle mounting configuration for space efficiency

Headers, Male Pins Applications

• Automotive electrical systems
• Industrial control panels
• Power distribution units

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required contact plating and orientation. Confirm that mating connectors are selected from the compatible AT Series lineup to ensure proper engagement. Check datasheets for precise dimensional tolerances and thermal requirements before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this model for applications requiring right-angle PCB integration with robust sealing capabilities. Ensure the mating plug corresponds to the female socket configuration. Validate that the 14-20 AWG wire gauge range aligns with the system's current carrying requirements and physical routing constraints.

Headers, Male Pins Part Context

This component belongs to the Amphenol Sine Systems AT Series™ PanelMate™ family, designed for heavy-duty multi-pin connections. The BoardLock™ variant specifically integrates mechanical locking features to prevent accidental disconnection in high-vibration environments, enhancing reliability in automotive and industrial sectors.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other AT Series receptacles with matching 12-position counts and right-angle configurations. Verify identical pin spacing and flange dimensions when considering alternative part numbers within the same manufacturer portfolio.
