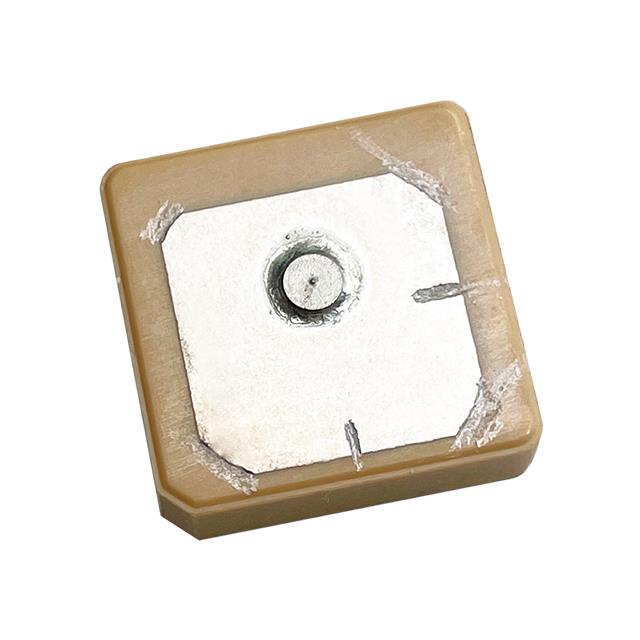

ATPG1590R1540A is listed in the Antennas RF range at ChipApex. The manufacturer field lists YIC. Its product description is CERAMIC GNSS/GPS PATCH ANTENNA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ATPG1590R1540A
- Description：CERAMIC GNSS/GPS PATCH ANTENNA
- Series：ATPG
- Mfr：YIC
- Package：Tray
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.59GHz
- Frequency Range：1.575GHz ~ 1.608GHz
- Antenna Type：Ceramic Patch
- Number of Bands：1
- VSWR：-
- Return Loss：-7dB
- Gain：-
- Features：-
- Termination：Pin
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.157" (4.00mm)
- Applications：GLONASS, GPS
- Power - Max：-
Antennas RF datasheet and documents for ATPG1590R1540A
Antennas RF Overview
The YIC ATPG1590R1540A is a ceramic GNSS/GPS patch antenna designed for navigation applications. It operates within the frequency range of 1.575GHz to 1.608GHz, supporting GLONASS and GPS systems. The component features pin termination and adhesive installation type. Its maximum height is 0.157 inches (4.00mm). The antenna exhibits an echo loss of -7dB and belongs to the ATPG series.
Antennas RF Feature Summary
- Ceramic construction for durability in navigation environments
- Supports both GLONASS and GPS signal reception
- Adhesive mounting method for secure integration
Antennas RF Applications
- GNSS receiver modules
- GPS tracking devices
- GLONASS positioning systems
Antennas RF Procurement Notes
Verify the manufacturer part number ATPG1590R1540A against official YIC documentation to ensure authenticity. Confirm that the received components match the specified ceramic patch design and adhesive installation requirements. Check for compliance with relevant environmental standards as indicated in the product specifications.
Antennas RF Selection Notes
Select this component when a compact ceramic patch antenna is required for combined GLONASS and GPS functionality. Ensure the application supports adhesive mounting and accommodates the specified frequency range of 1.575GHz to 1.608GHz. Verify that the system design allows for the physical dimensions and pin termination style provided by this model.
Antennas RF Part Context
This antenna is part of the ATPG series from YIC, specifically engineered for RF wireless navigation applications. It falls under the category of ceramic patch antennas operating in the UHF frequency group. The component is distinct from general RF receivers and serves as a dedicated passive element for satellite signal acquisition.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult official YIC resources for potential cross-references or alternative models within the same series.
