ATPG1590R2540A

Antennas RF Overview

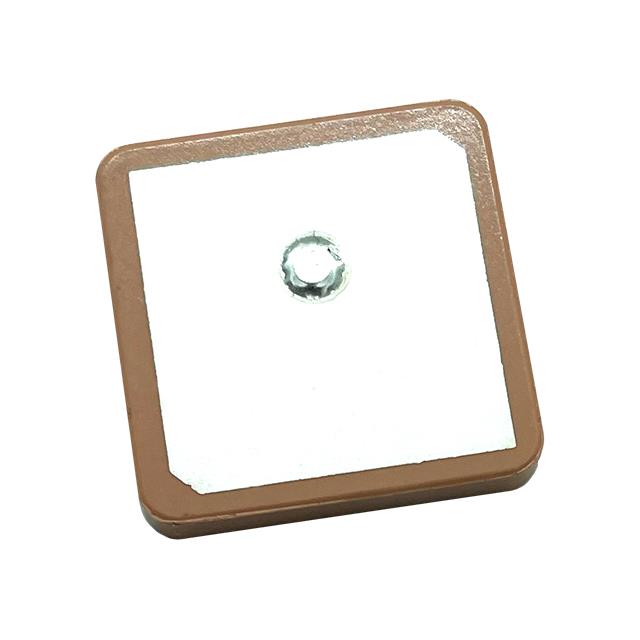

The YIC ATPG1590R2540A is a ceramic GNSS/GPS patch antenna designed for navigation applications. It operates within the frequency range of 1.575GHz to 1.608GHz, supporting GPS and GLONASS bands centered at 1.575GHz and 1.609GHz respectively. The component features right-hand circular polarization (RHCP) with a gain of 4.2dBi and a maximum height of 4.00mm. It utilizes pin termination and adhesive installation methods.

Antennas RF Feature Summary

• Supports dual-band GNSS and GPS navigation signals
• Utilizes ceramic patch construction for durability
• Features right-hand circular polarization for signal integrity

Antennas RF Applications

• GPS navigation systems
• GLONASS positioning devices
• GNSS receiver integration

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency bands and polarization type for your design. Confirm the adhesive mounting method is compatible with your enclosure materials. Ensure the pin termination style aligns with your PCB layout requirements before finalizing procurement.

Antennas RF Selection Notes

Select this model when a low-profile ceramic patch antenna is required for both GPS and GLONASS reception. Consider the 4.00mm height constraint and adhesive installation method during mechanical design. Verify compatibility with surrounding components to maintain optimal RHCP performance.

Antennas RF Part Context

This component belongs to the ATPG series of ceramic patch antennas from YIC. It is specifically engineered for global navigation satellite system applications, providing reliable signal reception for positioning and timing purposes in compact electronic devices.

Antennas RF Replacement Considerations

The ATPG1590R1540A is a related variant within the same series. Verify dimensional differences and specific electrical parameter alignments before substituting.
