ATPGGBR1840A

Antennas RF Overview

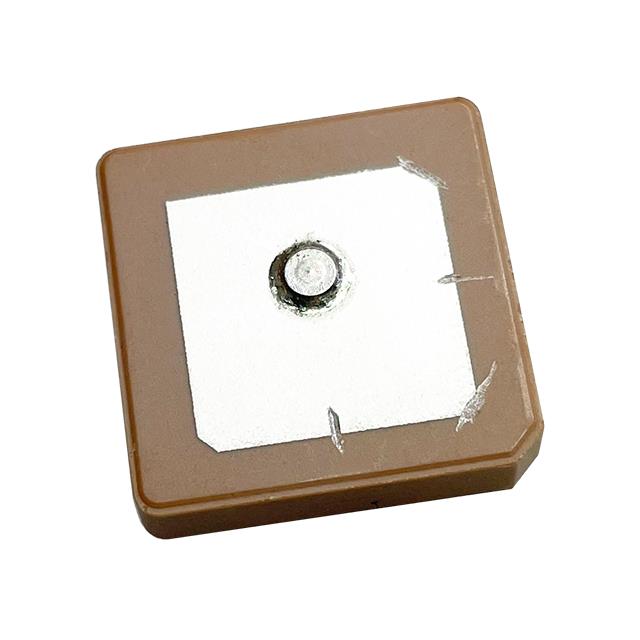

The ATPGGBR1840A is a ceramic patch antenna manufactured by YIC, designed for global navigation satellite system applications. It supports GPS, GLONASS, and BeiDou constellations within the L1 frequency band. The component features a pin termination type and utilizes an adhesive mounting method for secure installation. This single-band antenna operates in the UHF frequency group, specifically covering the range from 1.575 GHz to 1.608 GHz. The maximum height of the device is 4.00 mm (0.157 inches). It is currently listed as an active part with return loss specifications meeting -10 dB requirements.

Antennas RF Feature Summary

• Supports multi-constellation reception including GPS, GLONASS, and BeiDou systems
• Utilizes a ceramic patch design for stable RF performance
• Features adhesive mounting for direct surface attachment
• Employs pin termination for circuit board integration

Antennas RF Applications

• GNSS receiver navigation modules
• GPS clock synchronization systems
• Positioning devices requiring multi-constellation support

Antennas RF Procurement Notes

Verify the specific datasheet version for the ATPGGBR1840A before procurement, as official documentation availability may vary across distributors. Confirm that the adhesive mounting requirement aligns with the mechanical constraints of the target application. Ensure compatibility with the intended GNSS receiver module, such as those in the YIC5 series, for optimal system integration. Check RoHS compliance status if required by regional regulations.

Antennas RF Selection Notes

Select this component when multi-constellation support for GPS, GLONASS, and BeiDou is required in a low-profile form factor. The ceramic patch construction offers durability suitable for various environmental conditions. Consider the adhesive mounting method if through-hole or surface-mount soldering is not preferred. Verify that the operating frequency range matches the specific GNSS signals needed for the application.

Antennas RF Part Context

The ATPGGBR1840A belongs to the ATPGGB series of RF antennas produced by YIC. YIC is established as a supplier of frequency control products and related components. This antenna is part of a broader ecosystem that includes compatible GNSS receivers like the YIC51009EBGG-33. The series focuses on providing integrated solutions for navigation and positioning applications.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data. Evaluate other models within the ATPGGB series for potential alternatives based on specific frequency or mounting requirements.
