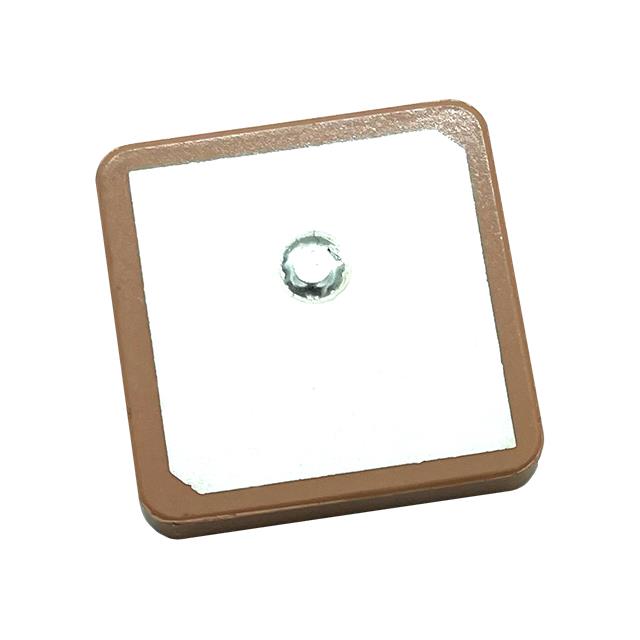

ATPGGBR2540A

$1.30

Description：RF ANT GPS/GLONASS/BEIDOU PATCH
Series：ATPGGB
Mfr：YIC
Package：Tray

SKU:4b2c96d8a33e Category: RF Antennas Brand: YIC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ATPGGBR2540A is listed in the Antennas RF range at ChipApex. The manufacturer field lists YIC. Its product description is RF ANT GPS/GLONASS/BEIDOU PATCH. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ATPGGBR2540A

Description：RF ANT GPS/GLONASS/BEIDOU PATCH
Series：ATPGGB
Mfr：YIC
Package：Tray
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz
Antenna Type：Ceramic Patch
Number of Bands：3
VSWR：1.5
Return Loss：-
Gain：-
Features：-
Termination：SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.157" (4.00mm)
Applications：Beidou, Galileo, GLONASS, GPS
Power - Max：-

Antennas RF datasheet and documents for ATPGGBR2540A

ATPGGBR2540A

Antennas RF Overview

The YIC ATPGGBR2540A is a ceramic patch RF antenna designed for multi-constellation GNSS applications. It supports GPS, GLONASS, BeiDou, and Galileo systems with center frequencies of 1.561 GHz, 1.575 GHz, and 1.602 GHz. The device operates within specific bandwidths: 1.559–1.563 GHz for BeiDou, 1.574–1.576 GHz for GPS, and 1.597–1.607 GHz for GLONASS. It features right-hand circular polarization (RHCP) and an adhesive mounting type.

Antennas RF Feature Summary

Supports multi-constellation GNSS reception including GPS, GLONASS, BeiDou, and Galileo
Utilizes ceramic patch construction for durability and environmental stability
Features right-hand circular polarization for optimal signal reception
Designed with adhesive mounting for secure integration

Antennas RF Applications

Global Navigation Satellite System (GNSS) receivers
GPS tracking devices
GLONASS positioning modules
BeiDou navigation equipment
Galileo satellite navigation systems

Antennas RF Procurement Notes

Verify the exact frequency band requirements against your system design to ensure compatibility with the specified BeiDou, GPS, and GLONASS ranges. Confirm that the adhesive mounting method aligns with your assembly process and surface material. Ensure the ceramic patch form factor fits within the mechanical constraints of the final product enclosure.

Antennas RF Selection Notes

Select this component when multi-constellation support is required for high-accuracy positioning. The ceramic patch design offers robust performance in various environments. Consider the adhesive mounting option if soldering or through-hole methods are not feasible. Verify that the RHCP characteristic matches the polarization of the intended satellite signals for maximum efficiency.

Antennas RF Part Context

This part belongs to the YIC ATPGGB series of GNSS patch antennas. It is specifically engineered for applications requiring reliable reception across multiple global satellite networks. The series includes variants optimized for different frequency bands and mounting styles, providing flexibility for diverse navigation and timing solutions.
