ATSAMD20J14A-CN

Overview

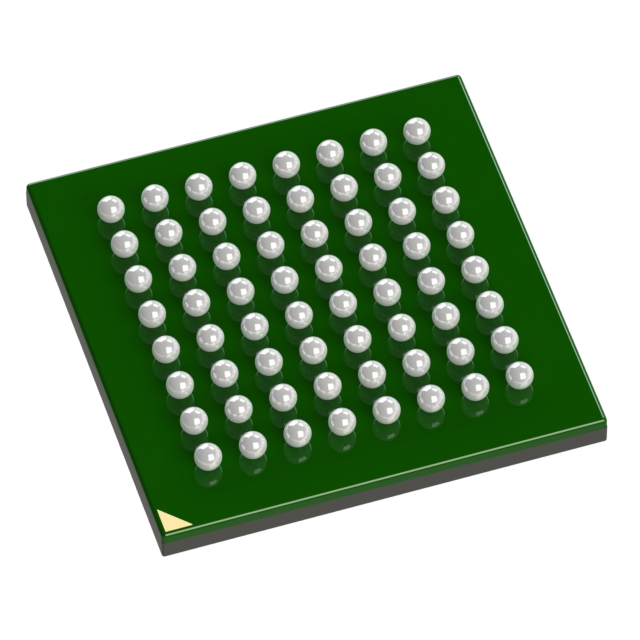

The ATSAMD20J14A-CN is a 32-bit microcontroller from the SAM D20J series, featuring an ARM Cortex-M0+ core operating at up to 48 MHz. It integrates 16 KB of in-system self-programmable Flash memory and 2 KB of SRAM. The device supports a supply voltage range of 2.7 V to 5.5 V and operates within a temperature range of -40°C to 105°C. It is housed in a 64-UFBGA package with dimensions of 5x5 mm. Key peripherals include a 12-bit ADC with 20 channels, a 10-bit DAC, multiple SERCOM interfaces, and an RTC.

Feature Summary

• Integrates an ARM Cortex-M0+ processor for efficient low-power execution
• Includes a 12-bit Analog-to-Digital Converter with up to 20 input channels
• Features Serial Communication Interfaces (SERCOM) configurable as USART, I2C, or SPI
• Supports internal clock options with a Digital Frequency Locked Loop

Applications

• Low-power embedded control systems
• Industrial communication nodes using I2C or SPI
• Battery-operated devices requiring extended temperature operation
• Data acquisition applications utilizing the 12-bit ADC

Procurement Notes

Verify the specific suffix 'CN' against the manufacturer's official datasheet to confirm the package type and temperature range specifications. Ensure compatibility with design tools by checking the latest errata documents for any known silicon revisions. Confirm that the 2.7V to 5.5V supply voltage aligns with your system power architecture before finalizing procurement.

Selection Notes

Select this component when a balance of moderate memory capacity and extended industrial temperature range is required. The 64-pin UFBGA package suits compact designs where space is limited. Consider the 48 MHz maximum speed and available peripheral count relative to application complexity. Verify that the 2.7V minimum supply voltage meets your system's power rail requirements compared to lower-voltage variants.

Part Context

This part belongs to the Microchip SAM D20 family, which utilizes the ARM Cortex-M0+ core. The family emphasizes low-power performance with features like SleepWalking peripherals and multiple sleep modes. The SAM D20J sub-series typically offers specific memory configurations and pin counts tailored for cost-sensitive yet capable embedded applications.

Replacement Considerations

Consult the SAM D20 family datasheet for pin-compatible alternatives with different memory sizes, such as the ATSAMD20G or ATSAMD20E series. Verify that any substitute maintains the same 64-UFBGA package and extended temperature rating if those constraints are critical.
