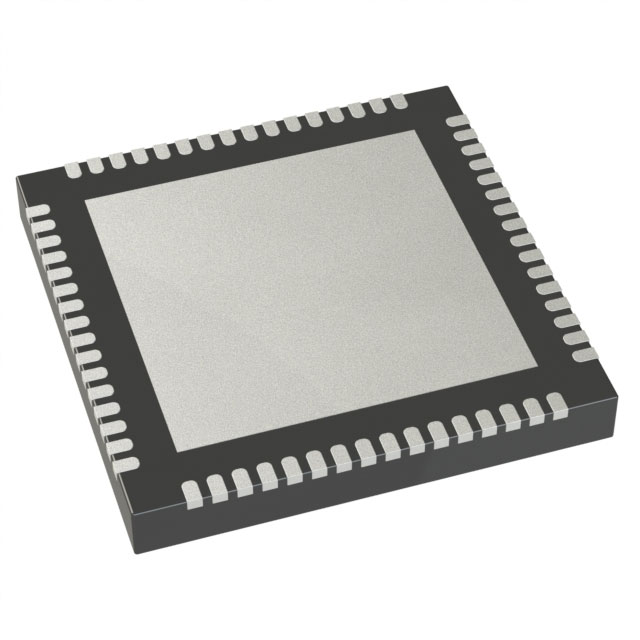

ATSAMD20J14B-MU

Overview

The ATSAMD20J14B-MU is a Microchip Technology ARM microcontroller based on the Cortex-M0+ core, operating at a maximum clock frequency of 48 MHz. It features 16 kB of Flash program memory and 2 kB of SRAM data RAM within a VQFN-64 package. The device supports a supply voltage range from 1.62 V to 3.63 V and includes 52 I/O lines. Peripheral interfaces include I2C, SPI, and USART. It integrates a 12-bit ADC with 20 channels and a 10-bit DAC. The component operates within an industrial temperature range of -40°C to +85°C.

Feature Summary

• Integrates an ARM Cortex-M0+ processor core for efficient 32-bit processing.
• Provides multiple communication interfaces including I2C, SPI, and USART.
• Includes analog conversion capabilities with a 12-bit ADC and 10-bit DAC.
• Supports low-voltage operation suitable for battery-powered applications.

Applications

• Industrial control systems requiring robust peripheral connectivity
• Consumer electronics utilizing low-power ARM architectures
• General-purpose embedded applications with serial communication needs

Procurement Notes

Verify the specific suffix 'MU' confirms the VQFN-64 package and industrial temperature grade. Confirm RoHS compliance status through official manufacturer documentation. Ensure design compatibility with the 1.62 V to 3.63 V supply voltage range. Check for any recent Product Change Notifications regarding assembly or material changes.

Selection Notes

Select this component when a balance of moderate memory capacity and extensive I/O count is required in a compact surface-mount package. Compare against other SAMD20 variants if higher memory or different pin counts are needed. Consider the 48 MHz performance limit for timing-critical tasks. Verify that the VQFN-64 footprint matches the PCB layout constraints.

Part Context

This part belongs to the SAM D20 family of 32-bit ARM Cortex-M0+ microcontrollers. It shares architectural similarities with other SAMD20 devices but differs in memory size and package options. The J-series typically denotes specific pin counts and peripheral sets within the broader SAM D20 portfolio designed for cost-sensitive and space-constrained designs.

Replacement Considerations

ATSAMD20J14A-MU: Similar specifications with potential differences in manufacturing revision or minor feature availability. ATSAMD20J15A-MU: Offers increased memory (32 kB Flash, 4 kB SRAM) in the same package. ATSAMD20G14B-MU: Different package type (48-QFN) and potentially different voltage ranges; verify pinout compatibility.
