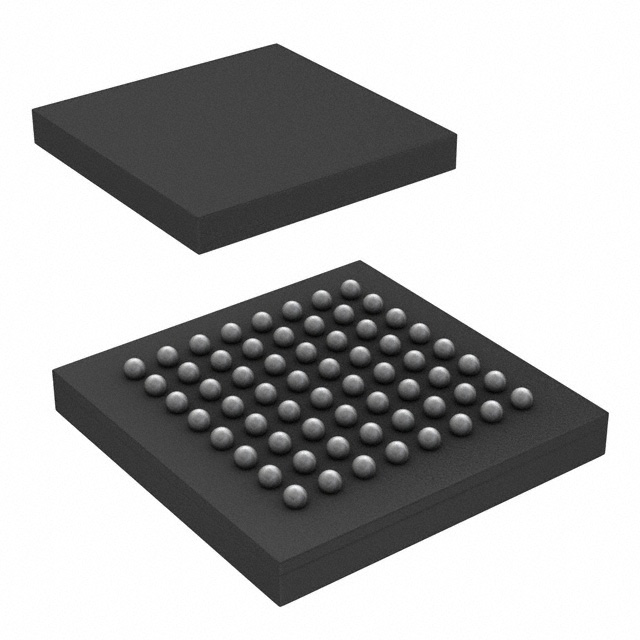

ATSAMD51J20A-UNT

Overview

The ATSAMD51J20A-UNT is an ARM microcontroller from the Microchip ATSAMD51 series, featuring a 32-bit ARM Cortex-M4F core with a floating-point unit. It operates at a maximum clock frequency of 120 MHz and includes 1 MB of Flash program memory and 256 kB of SRAM data RAM. The device provides 51 I/O pins and supports multiple communication interfaces including USB, CAN, I2C, SPI, USART, and QSPI. It features 12-bit ADC and DAC resolution with 24 ADC channels. Operating voltage ranges from 1.71 V to 3.63 V, with an operating temperature range of -40°C to +85°C. The component is AEC-Q100 qualified and housed in a TQFP-64 package.

Feature Summary

• Integrated ARM Cortex-M4F core with hardware floating-point unit for efficient signal processing
• Extended Flash Performance architecture supporting high-speed code execution
• Comprehensive connectivity suite including USB Full-Speed and CAN interface
• High-resolution analog peripherals with 12-bit ADC and DAC capabilities

Applications

• Automotive electronic control units requiring AEC-Q100 qualification
• Industrial automation controllers utilizing CAN bus communication
• USB-enabled peripheral devices and host controllers
• Signal processing applications leveraging the FPU and high-speed ADC

Procurement Notes

Verify the specific suffix 'UNT' against official Microchip documentation to confirm the tape-and-reel packaging configuration, as this differs from tray-packaged variants like 'AU'. Ensure compatibility with moisture sensitivity level requirements during assembly. Confirm that the selected distributor sources directly from authorized channels to guarantee authenticity and traceability for automotive-grade components.

Selection Notes

Select this variant when tape-and-reel packaging is required for automated surface-mount assembly processes. Compare against ATSAME51J20A if Ethernet connectivity is needed instead of USB/CAN. Consider ATSAMD51J19A if reduced memory capacity suffices for the application. Verify pinout compatibility with existing TQFP-64 footprints when migrating from other MCU families.

Part Context

This component belongs to the ATSAMD51 family of 32-bit microcontrollers designed for performance-critical applications. It shares architectural similarities with the ATSAME51 series but focuses on cost-effective solutions without Ethernet. The J20 designation indicates the specific memory configuration of 1 MB Flash and 256 kB RAM within the J-series footprint options.

Replacement Considerations

ATSAMD51J20A-AU offers identical electrical specifications but uses tray packaging. ATSAME51J20A-AU provides similar performance with added Ethernet capability. ATSAMD51J19A-AU serves as a lower-memory alternative with 512 KB Flash.
