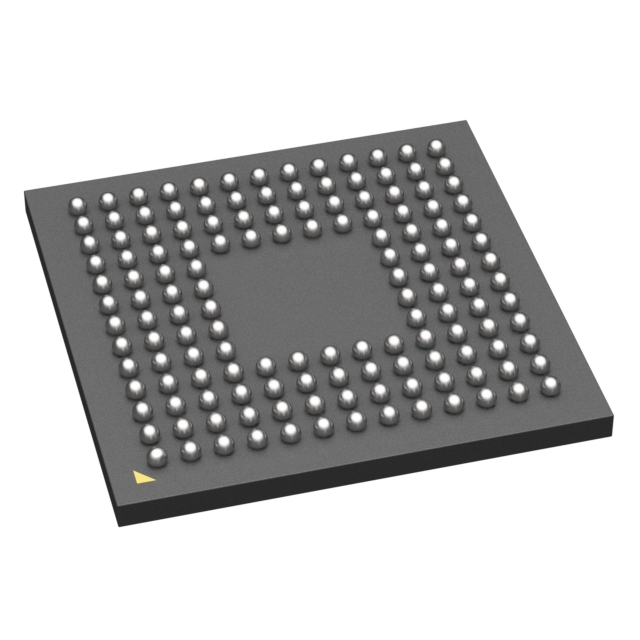

ATSAME70Q20A-CFNT
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC MCU 32BIT 1MB FLASH 144UFBGA
- Series：SAM E70
- Mfr：Microchip Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Core Processor：ARM® Cortex®-M7
- Core Size：32-Bit Single-Core
- Speed：300MHz
- Connectivity：CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB
- Peripherals：Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
- Number of I/O：114
- Program Memory Size：1MB (1M x 8)
- Program Memory Type：FLASH
- EEPROM Size：-
- RAM Size：384K x 8
- Voltage - Supply (Vcc/Vdd)：1.62V ~ 3.6V
- Data Converters：A/D 24x12b; D/A 2x12b
- Oscillator Type：Internal
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：144-UFBGA (6x6)
- Package / Case：144-UFBGA
- Grade：-
- Qualification：-
Download product information
Overview
The ATSAME70Q20A-CFNT is a 32-bit microcontroller from the SAM E70 series, featuring an ARM Cortex-M7 core operating at 300MHz. It integrates 1MB of flash memory and 384KB of SRAM within a 144-UFBGA (6x6) package. The device supports a supply voltage range of 1.62V to 3.6V and operates between -40°C and 105°C. Connectivity includes Ethernet, USB, CANbus, SPI, I2C, UART, QSPI, and SDIO interfaces. Peripheral features comprise DMA, PWM, I2S, and multiple ADC/DAC channels.
Feature Summary
- High-performance processing via ARM Cortex-M7 core with DSP instructions
- Integrated high-speed connectivity including Ethernet and USB OTG
- Extensive analog capabilities with multiple 12-bit ADCs and DACs
- Robust peripheral set including DMA, PWM, and watchdog timer
Applications
- Industrial motor control systems
- Human-machine interface (HMI) displays
- Smart metering applications
- Medical equipment controllers
Procurement Notes
Verify the specific suffix CFNT confirms the 144-UFBGA package and tape-and-reel shipping format. Confirm the A variant denotes standard commercial specifications. Cross-reference the manufacturer part number against official Microchip documentation to ensure authenticity and correct revision level before integration into production designs.
Selection Notes
Select this component when a balance of high computational throughput and rich connectivity is required in a compact footprint. The UFBGA package suits dense PCB layouts. Ensure design requirements align with the 300MHz clock speed and available GPIO count. Consider thermal management for the BGA package under full load conditions within the specified temperature range.
Part Context
This MCU belongs to the SAM E70 family, designed for performance-oriented embedded applications. It shares architectural similarities with the SAM S70 but focuses on cost-effective industrial solutions. The device leverages the Cortex-M7 architecture to deliver efficient code execution and advanced signal processing capabilities for complex control loops.
Replacement Considerations
ATSAME70Q20A-AN offers identical electrical specifications in a 144-LQFP package. ATSAMS70Q20A-CFN provides similar core features in a UFBGA package but belongs to the SAM S70 series. Verify pin compatibility and software library support when substituting these variants.
