ATSAMG51G18A-UUT

Overview

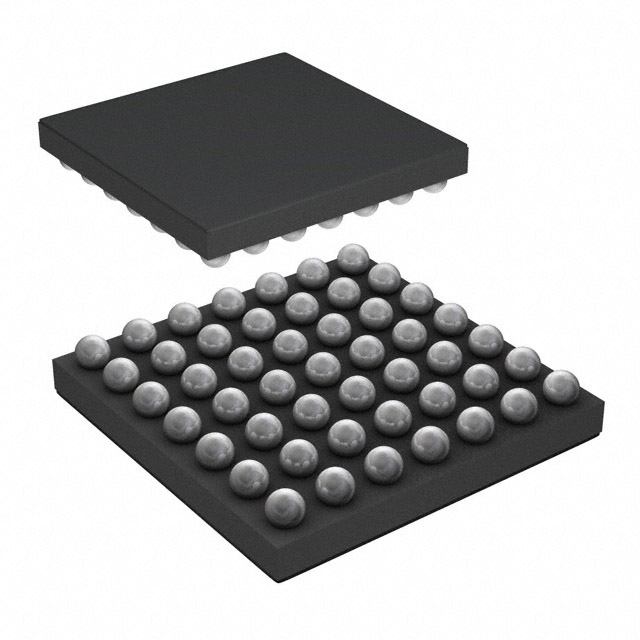

The ATSAMG51G18A-UUT is a 32-bit microcontroller based on the ARM Cortex-M4 core, operating at speeds up to 48 MHz. It integrates 256 KB of embedded Flash memory and 64 KB of SRAM. The device features an integrated Floating Point Unit (FPU) and DSP instructions for enhanced signal processing capabilities. It includes a high-precision internal RC oscillator and supports various low-power modes. Connectivity options include multiple USARTs, TWI interfaces, and SPI modules. The unit is housed in a 49-WLCSP package.

Feature Summary

• Integrates ARM Cortex-M4 processor with hardware floating-point unit and DSP instruction support
• Includes embedded voltage regulator for single-supply operation and comprehensive power management modes
• Features multiple communication peripherals including TWI, SPI, and USART with DMA channels
• Equipped with an 8-channel 12-bit ADC and real-time timer functions

Applications

• Industrial control systems requiring efficient signal processing
• Consumer electronics utilizing low-power ARM-based architectures
• Motor control applications leveraging DSP and FPU capabilities
• General-purpose embedded devices needing robust analog-to-digital conversion

Procurement Notes

Verify the specific suffix UUT corresponds to the WLCSP-49 packaging and tape-and-reel delivery format when sourcing. Confirm that the component meets RoHS compliance standards as indicated by Microchip Technology documentation. Ensure compatibility with surface-mount assembly processes suitable for wafer-level chip-scale packages. Cross-reference the part number against current Microchip databases to validate availability and revision status before finalizing procurement orders.

Selection Notes

Select this model when design requirements prioritize DSP performance within a compact footprint. The inclusion of an FPU makes it suitable for algorithms requiring complex mathematical operations. Consider the 48 MHz clock speed relative to power consumption constraints in battery-operated devices. Evaluate the available I/O lines and peripheral count against system interface needs to ensure adequate connectivity without external multiplexing.

Part Context

This component belongs to the Atmel SAMG series, designed for general-purpose applications with a focus on efficiency. It sits alongside other variants in the SAMG family, differing primarily in memory size and package type. The series targets markets demanding reliable microcontrollers with advanced analog and digital peripheral integration for cost-sensitive yet capable embedded solutions.

Replacement Considerations

Consult Microchip official documentation for direct pin-compatible substitutes within the SAMG51 series. Verify equivalent memory configurations and package dimensions when evaluating alternative part numbers.
