ATTINY1607-MF

Overview

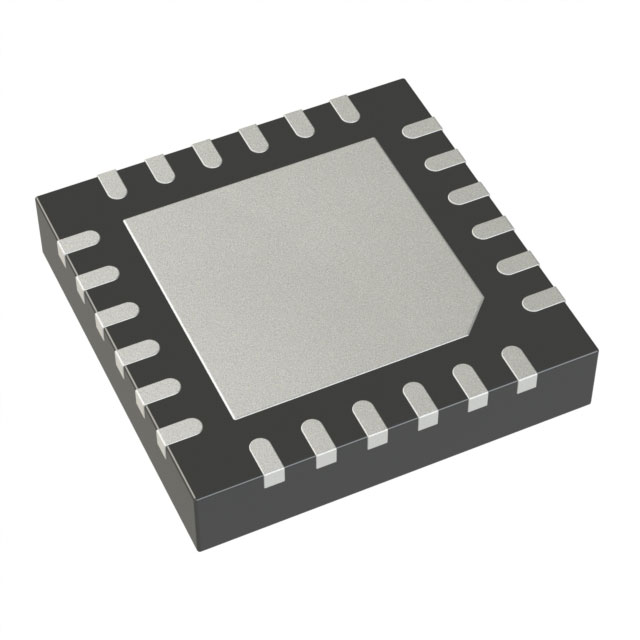

The ATTINY1607-MF is an 8-bit AVR RISC microcontroller from the tinyAVR 0-Series family, housed in a 24-pin VQFN package. It features a maximum clock frequency of 20 MHz and includes 16 KB of Flash program memory, 1 KB of SRAM, and 256 bytes of EEPROM. The device supports a supply voltage range of 1.8 V to 5.5 V and operates within a temperature range of -40°C to +105°C. It provides 22 I/O pins, a 10-bit ADC with 12 channels, and interfaces including I2C, SPI, and USART.

Feature Summary

• Utilizes high-performance, low-power AVR RISC architecture with hardware multiplier
• Integrates non-volatile memory including Flash, SRAM, and EEPROM
• Supports multiple communication protocols for system connectivity

Applications

• General-purpose embedded control systems
• Sensor interface modules
• Low-power industrial automation devices

Procurement Notes

Verify the specific suffix (MF) against official Microchip documentation to confirm package type and temperature grade. Ensure compatibility with required operating voltages and environmental conditions before integration. Cross-reference datasheet revisions for any pinout or electrical characteristic updates.

Selection Notes

Select this component when an 8-bit AVR core with moderate memory capacity and versatile I/O options is required. Consider the 20 MHz performance limit and 1.8V to 5.5V supply range against system power constraints. Evaluate the 24-pin VQFN footprint for PCB layout requirements.

Part Context

This part belongs to the ATtiny3217 series family, sharing architectural similarities with other tinyAVR 0-Series devices. It offers a balance of processing capability and peripheral integration suitable for cost-sensitive applications requiring reliable 8-bit performance.

Replacement Considerations

Consult official substitution guides for compatible alternatives within the tinyAVR 0-Series. Verify pin-to-pin compatibility and memory specifications if replacing with variants like ATTINY1607-MN.
