ATTINY1607-MFR

Overview

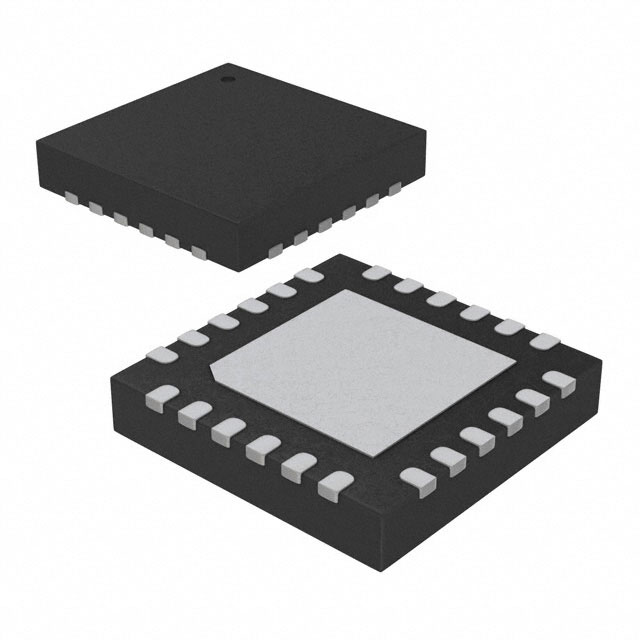

The ATTINY1607-MFR is an 8-bit AVR microcontroller from Microchip Technology, featuring a 20 MHz clock speed and 16 KB of Flash memory. It includes 1 KB of SRAM and 256 bytes of EEPROM. The device operates within a voltage range of 1.8 V to 5.5 V and supports temperatures from -40°C to +125°C. It offers 22 I/O pins in a 24-VQFN package, with interfaces including I2C, SPI, and USART.

Feature Summary

• Integrates an 8-bit AVR core with hardware multiplier for efficient processing
• Provides multiple communication interfaces including I2C, SPI, and USART
• Features low power consumption capabilities suitable for battery-operated devices

Applications

• Battery-powered sensor nodes
• Industrial control systems
• Consumer electronics

Procurement Notes

Verify the specific suffix 'MFR' indicates the bulk packaging format as per manufacturer documentation. Confirm operating temperature range requirements align with industrial specifications (-40°C to +125°C). Ensure voltage supply constraints (1.8V-5.5V) match system design parameters before procurement.

Selection Notes

Select this component for applications requiring moderate code space (16KB) and robust connectivity options. Consider the 24-pin VQFN package size for PCB layout constraints. Evaluate power management needs against the device's low-power modes and voltage range suitability for the target environment.

Part Context

Part of the ATtiny series, designed for cost-sensitive embedded applications. Offers a balance between performance and power efficiency. Commonly used in simple control tasks where extensive peripheral sets are not required.

Replacement Considerations

Check datasheet compatibility for pin-to-pin replacements within the ATtiny family. Verify memory sizes and interface availability match application requirements when considering alternative models.
