ATTINY20-CCUR
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

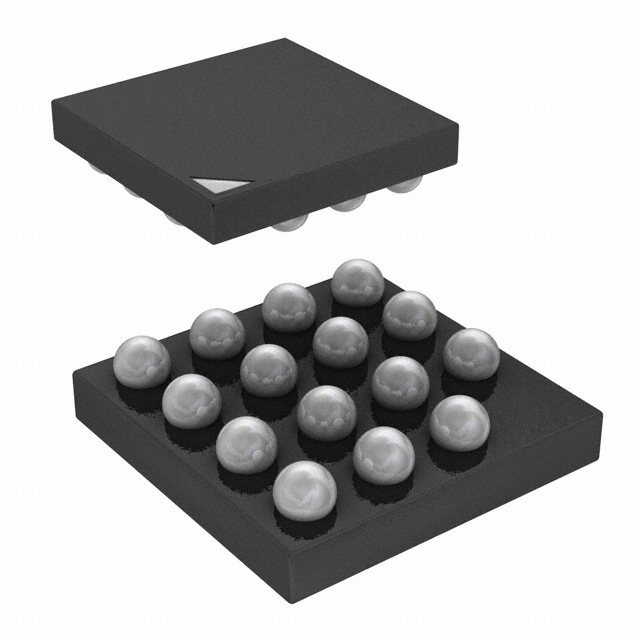

- Description：IC MCU 8BIT 2KB FLASH 15UFBGA
- Series：AVR® ATtiny
- Mfr：Microchip Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Core Processor：AVR
- Core Size：8-Bit
- Speed：12MHz
- Connectivity：I2C, SPI
- Peripherals：Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O：12
- Program Memory Size：2KB (1K x 16)
- Program Memory Type：FLASH
- EEPROM Size：-
- RAM Size：128 x 8
- Voltage - Supply (Vcc/Vdd)：1.8V ~ 5.5V
- Data Converters：A/D 8x10b
- Oscillator Type：Internal
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：15-UFBGA (3x3)
- Package / Case：15-UFBGA
- Grade：-
- Qualification：-
Download product information
Overview
The ATTINY20-CCUR is an 8-bit AVR microcontroller featuring a 15-UFBGA package. It includes 2 KB of in-system programmable Flash, 128 bytes of SRAM, and supports up to 12 MHz operation within the industrial temperature range (-40°C to +85°C). The device provides 12 programmable I/O lines, an 8-channel 10-bit ADC, and operates on a supply voltage between 1.8 V and 5.5 V.
Feature Summary
- Advanced RISC architecture with single-clock-cycle execution
- Non-volatile memory with high endurance and long data retention
- Integrated analog-to-digital converter with multiple channels
- Multiple low-power operating modes for energy efficiency
Applications
- Industrial control systems requiring robust performance
- Battery-powered devices utilizing low power consumption modes
- Sensor interfaces leveraging the integrated ADC capabilities
- General-purpose embedded applications using serial communication protocols
Procurement Notes
Verify the specific ordering suffix 'R' indicates tape and reel packaging configuration. Confirm that the component meets RoHS compliance standards as specified by the manufacturer. Ensure the selected speed grade aligns with the required operational frequency and voltage conditions for your design implementation.
Selection Notes
Select this model when a compact UFBGA footprint is necessary for space-constrained designs. Consider the 12 MHz processing speed and available I/O count for system requirements. Evaluate the industrial temperature rating if the application environment exceeds standard commercial limits.
Part Context
This component belongs to the ATtiny series of 8-bit AVR microcontrollers manufactured by Microchip Technology. It utilizes high-density non-volatile memory technology and offers in-system programming capabilities. The device is designed to balance processing throughput with minimal power consumption.
Replacement Considerations
Consult official documentation for verified substitute part numbers. Ensure any replacement maintains compatibility with the 15-UFBGA package and electrical specifications.
