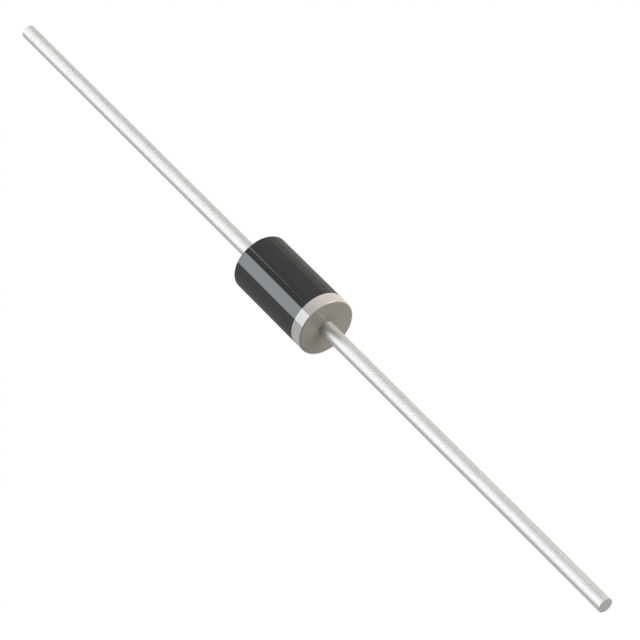

AU02WK

$0.30

Description：DIODE STANDARD 400V 800MA
Series：-
Mfr：Sanken Electric USA Inc.
Package：Tape & Box (TB)

SKU:d46fdae9a323 Category: Single Diodes Brand: Sanken Electric USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE STANDARD 400V 800MA
Series：-
Mfr：Sanken Electric USA Inc.
Package：Tape & Box (TB)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：400 V
Current - Average Rectified (Io)：800mA
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 800 mA
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：400 ns
Current - Reverse Leakage @ Vr：10 µA @ 400 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：Axial
Supplier Device Package：-
Operating Temperature - Junction：-40°C ~ 150°C
Grade：-
Qualification：-

Download product information

AU02WK

Overview

The AU02WK is a general-purpose rectifier diode manufactured by Sanken Electric. It utilizes silicon semiconductor material and features an axial package with two wire leads. The device supports a maximum average forward output current of 0.8 A and withstands a maximum repetitive reverse voltage of 200 V. Key electrical characteristics include a maximum reverse recovery time of 0.4 µs. The component is designed for through-hole mounting, ensuring isolated case connection capabilities within electronic circuits.

Feature Summary

Utilizes silicon material for reliable rectification performance
Features a fast reverse recovery characteristic optimized for switching applications
Provides isolated case connection for safe thermal management
Designed for through-hole axial mounting configurations

Applications

General purpose rectification in power supply circuits
Secondary side rectification in flyback converters
Freewheeling diode applications in offline buck converters
Freewheeling diode applications in buck-boost converters

Procurement Notes

Verify the specific suffix against official Sanken documentation to confirm exact electrical tolerances and marking codes. Ensure the procurement channel provides genuine components with traceable manufacturing data. Confirm RoHS compliance status directly with the supplier or manufacturer datasheet prior to integration into regulated assemblies.

Selection Notes

Select this component when a robust axial rectifier with moderate current handling and fast recovery is required. Evaluate the 200 V reverse voltage rating against peak circuit transients. Consider the 0.8 A continuous current limit relative to thermal dissipation requirements in the target enclosure design.

Part Context

This part belongs to Sanken's discrete diode portfolio, specifically engineered for general-purpose switching and rectification tasks. It complements other axial diodes like the AU01Z, offering higher current capacity while maintaining similar voltage ratings and recovery speeds suitable for common offline power conversion topologies.
