AUT20-4594-A

Overview

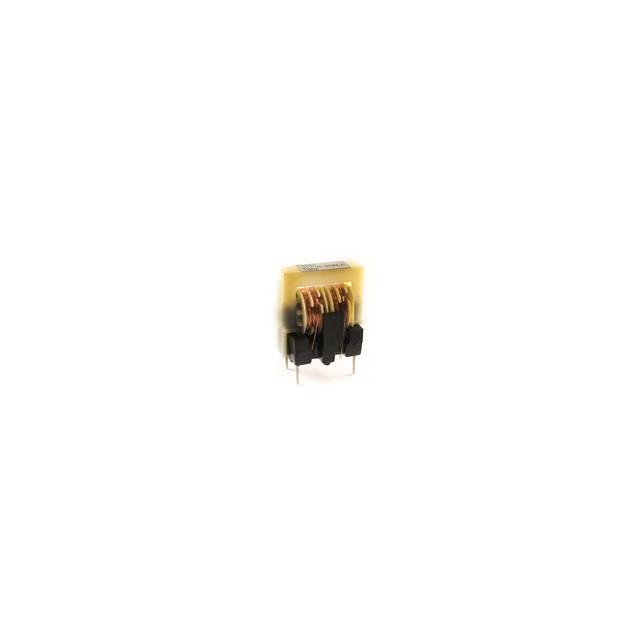

The AUT20-4594-A is a common mode choke manufactured by Allied Components International. It features a 35 mH inductance and supports a current rating of 600 mA. The component utilizes a two-line configuration for noise suppression. It is designed for through-hole mounting, providing a robust mechanical solution for circuit protection applications requiring specific electromagnetic interference filtering characteristics.

Feature Summary

• Provides common mode noise suppression via dual-line architecture
• Engineered for through-hole PCB integration
• RoHS compliant construction

Applications

• Electromagnetic interference filtering in electronic circuits
• Signal line protection against common mode noise
• Power supply input/output filtering stages

Procurement Notes

Verify the exact inductance value of 35 mH and current rating of 600 mA against design requirements. Confirm the through-hole package type matches the board layout. Ensure RoHS compliance status aligns with regulatory standards. Cross-reference the manufacturer part number to avoid substitution errors.

Selection Notes

Select this component when a high inductance value is required for low-frequency noise attenuation. The through-hole format suits applications prioritizing mechanical stability over space constraints. Evaluate the 600 mA limit to ensure it meets the operational current demands without saturation.

Part Context

This component belongs to the passive filter category, specifically within common mode chokes. Allied Components International produces various transformers and inductors. This specific model addresses needs for discrete noise suppression rather than integrated magnetic solutions.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific component.
