Product Detailed Parameters
- Description：CMC 6.8MH 850MA 2LN THROUGH HOLE
- Series：-
- Mfr：Allied Components International
- Package：Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：850mA
- DC Resistance (DCR) (Max)：190mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-20°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.945" L x 0.650" W (24.00mm x 16.50mm)
- Height (Max)：0.925" (23.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：6.8 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

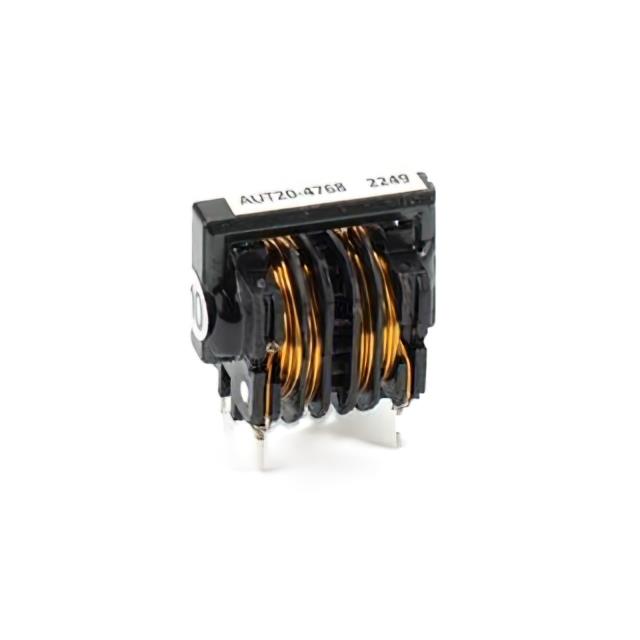

The AUT20-4768 is a standard magnetic component manufactured by Allied Components International, designed for integration into electronic circuits requiring inductive or transformer functionality. As part of the company's portfolio established in 1992, this unit represents their capability to produce both industry-standard and custom magnetic modules. The component is engineered to support applications in LAN, telecom, power conversion, test equipment, and industrial designs, providing reliable performance within these specific technical environments.
Feature Summary
- Manufactured as a standard or custom magnetic module by Allied Components International
- Designed for integration into LAN, telecom, and power conversion systems
- Supports industrial design requirements through specialized magnetic component engineering
Applications
- LAN network interfaces
- Telecommunications equipment
- Power conversion systems
Procurement Notes
Verify the exact datasheet specifications directly from Allied Components International before procurement. Confirm that the AUT20-4768 meets all required electrical parameters for your specific circuit design. Ensure compatibility with your manufacturing process and environmental conditions. Cross-reference the part number with official distributor catalogs to confirm current availability and authenticity. Request sample units for initial testing if possible.
Selection Notes
Select the AUT20-4768 based on its suitability for LAN, telecom, or power conversion applications as documented by the manufacturer. Consider the component's role within your broader magnetic component strategy. Evaluate whether standard or custom configurations are necessary for your project. Verify that the physical dimensions and mounting style align with your PCB layout constraints. Consult official documentation for detailed technical requirements.
Part Context
Allied Components International has been designing and manufacturing magnetic components since 1992. The company specializes in both standard and custom transformers, inductors, and ferrite beads. The AUT20-4768 falls within their range of products used in various electronic designs. Their headquarters are located in Tustin, California, supporting global distribution of these magnetic solutions.
Replacement Considerations
No public substitute part numbers are confirmed for the AUT20-4768. Contact Allied Components International directly for potential equivalent recommendations. Verify any alternative components against original specifications before implementation.
