AUU105-4652

Overview

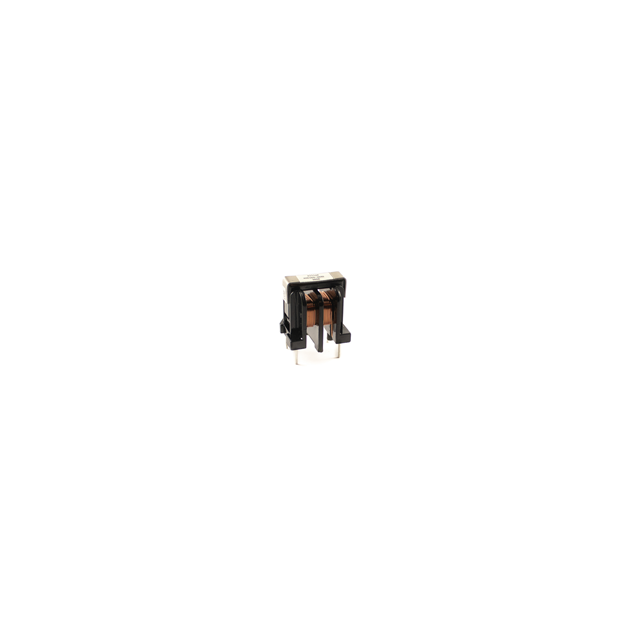

The AUU105-4652 is a common mode choke manufactured by Allied Components International. This component provides electromagnetic interference suppression with an inductance of 370uH measured at 1kHz and a DC resistance of 300mΩ.

Feature Summary

• Provides common mode noise attenuation for signal lines
• Designed for integration into compact electronic assemblies

Applications

• Telecommunications equipment
• Networking interfaces
• Power conversion circuits

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and thermal ratings before finalizing the design. Ensure the supplier source is authorized to guarantee component authenticity and traceability. Cross-reference the part number with official manufacturer documentation to validate specifications against current production standards.

Selection Notes

Select this component when designing circuits requiring moderate common mode inductance with low series resistance. Evaluate the operating frequency range to ensure the 1kHz inductance specification aligns with the target noise spectrum. Consider physical mounting constraints as the component form factor must fit within the designated PCB footprint area.

Part Context

Allied Components International designs and manufactures standard and custom magnetic components, including inductors and ferrite beads. The company supplies these products for commercial and industrial markets, focusing on networking, telecommunications, and test equipment applications since its establishment in 1992.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
