AV-30.000MAGJ-T

Crystals Overview

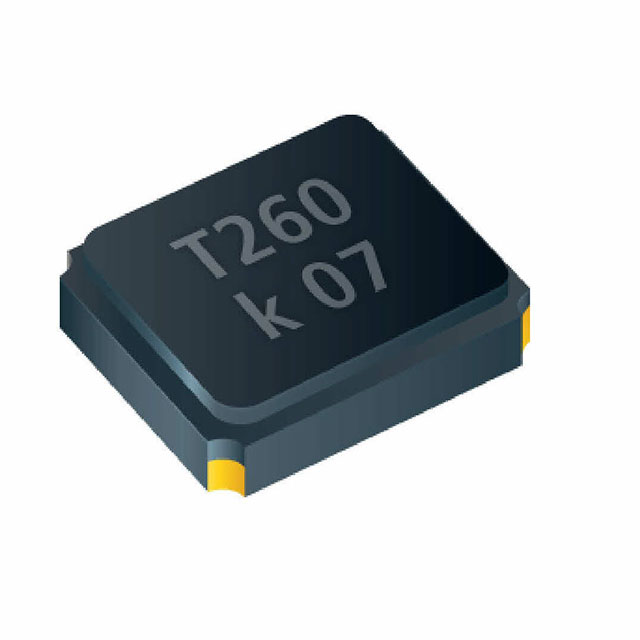

The AV-30.000MAGJ-T is a fundamental mode quartz crystal resonator manufactured by TXC Corporation, designed for surface-mount applications in automotive environments. It operates at a nominal frequency of 30 MHz with a load capacitance of 18 pF and an equivalent series resistance of 60 Ohms. The component meets AEC-Q200 qualification standards, ensuring reliability under harsh conditions. It features a frequency tolerance of ±30 ppm and stability of ±50 ppm across a temperature range of -40°C to +85°C. The device utilizes a 4-SMD, no-lead package measuring 3.2 mm x 2.5 mm with a maximum height of 0.90 mm.

Crystals Feature Summary

• AEC-Q200 qualified for automotive grade reliability
• Fundamental mode operation for precise timing
• Compact 4-SMD surface-mount footprint

Crystals Applications

• Automotive electronic control units
• In-vehicle communication systems
• Dashboard instrumentation modules

Crystals Procurement Notes

Verify the specific suffix 'MAGJ' against the manufacturer's official part number guide to confirm exact electrical parameters and packaging specifications. Ensure that the requested quantity aligns with the standard factory reel size of 3000 units. Confirm RoHS compliance status and moisture sensitivity level requirements prior to finalizing procurement orders.

Crystals Selection Notes

Select this component when a 30 MHz reference signal is required for automotive-grade circuits. The 18 pF load capacitance must match the circuit design requirements. Consider the 60 Ohm ESR value for oscillator circuit compatibility. The wide operating temperature range supports deployment in demanding vehicular environments without additional thermal management.

Crystals Part Context

This part belongs to the AV series of automotive crystals from TXC Corporation. The series is specifically engineered to meet the rigorous quality and performance standards required by the automotive industry. These components are distinct from general-purpose consumer electronics crystals due to their enhanced stability and qualification testing protocols.

Crystals Replacement Considerations

Direct substitutes require matching 30 MHz frequency, 18 pF load capacitance, and AEC-Q200 certification. Verify package dimensions of 3.2x2.5 mm and ESR of 60 Ohms. Cross-reference with other TXC automotive crystal models or competitor equivalents offering identical electrical characteristics and automotive qualification.
