AV-37.050MAGV-T

Crystals Overview

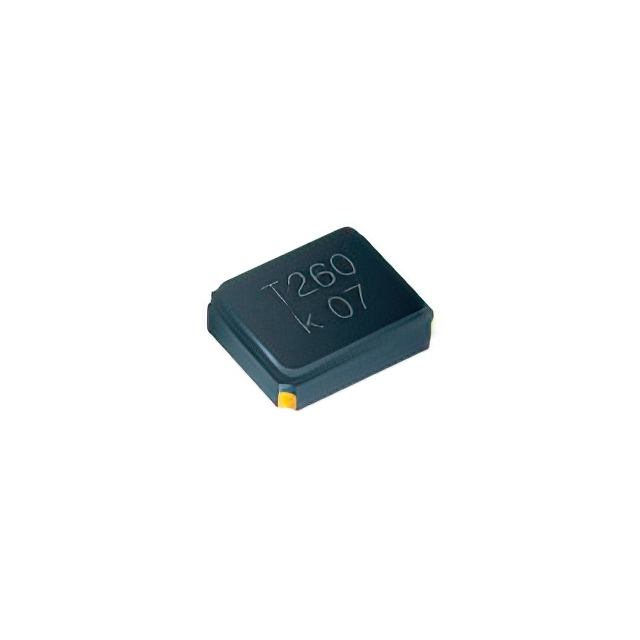

The AV-37.050MAGV-T is a surface-mount crystal component manufactured by TXC Corporation, marketed under the FTS brand. It operates at a nominal frequency of 37.05 MHz with a fundamental oscillation mode. The device features a 4-SMD, No Lead package measuring 3.20mm x 2.50mm. Key electrical specifications include a frequency tolerance of ±30ppm and a frequency stability of ±50ppm over the operating temperature range of -40°C to +85°C. The load capacitance is specified as 8pF.

Crystals Feature Summary

• Surface mount design in a compact 3.2x2.5mm 4-SMD package
• Fundamental oscillation mode for stable signal generation
• Wide operating temperature range from -40°C to +85°C
• RoHS compliant construction

Crystals Applications

• Clock signal generation for microcontrollers
• Timing references for communication interfaces
• Frequency control in consumer electronics
• Oscillator circuits in industrial control systems

Crystals Procurement Notes

Verify manufacturer origin between TXC Corporation and FTS Passives due to dual branding in distribution channels. Confirm RoHS compliance status and package dimensions (3.2x2.5mm) match design requirements. Ensure load capacitance of 8pF aligns with circuit design before procurement.

Crystals Selection Notes

Select this component when a 37.05MHz fundamental crystal is required in a small surface-mount footprint. Consider the ±30ppm tolerance and ±50ppm stability limits against system timing requirements. The -40°C to +85°C range suits general commercial and industrial applications. Verify compatibility with oscillator circuit load capacitance.

Crystals Part Context

This part belongs to the AV Series of crystals from TXC Corporation. It is an active product designed for surface-mount assembly. The component serves as a passive frequency-determining element in oscillator circuits, providing precise timing signals for digital systems requiring 37.05MHz reference frequencies.

Crystals Replacement Considerations

Direct substitutes must match 37.05MHz frequency, 8pF load capacitance, 3.2x2.5mm package, and ±30ppm tolerance. Verify equivalent frequency stability and temperature range specifications before substitution.
