AV10070001

Crystals Overview

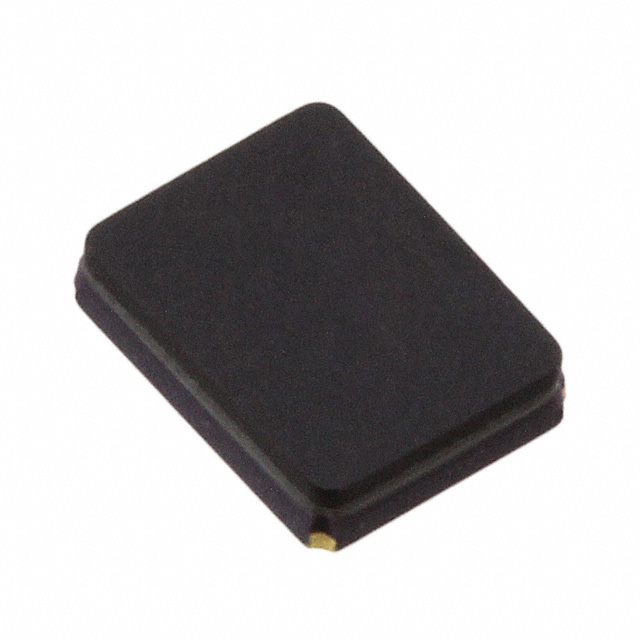

The AV10070001 is a surface-mount crystal oscillator manufactured by TXC Corporation. It operates at a fundamental frequency of 10 MHz with a load capacitance of 12 pF. The component utilizes an SMD-4 package without leads, measuring 3.2 mm in length and 2.5 mm in width. It supports a standard operating temperature range from -40°C to +85°C. The device features a frequency tolerance of 30 ppm and stability of 50 ppm. Equivalent series resistance is specified at 100 ohms, with a drive level of 10 uW.

Crystals Feature Summary

• Provides stable 10 MHz timing signals for digital circuits
• Designed for surface-mount assembly on printed circuit boards
• Operates reliably within industrial temperature ranges

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing systems

Crystals Procurement Notes

Verify the specific package variant and temperature grade against the official datasheet before ordering. Confirm that the 12 pF load capacitance matches the target circuit design requirements. Ensure compatibility with the intended soldering profile for SMD-4 components. Cross-reference the manufacturer part number to avoid confusion with similar frequency variants.

Crystals Selection Notes

Select this component when a 10 MHz reference is required for space-constrained designs. The SMD-4 footprint allows for compact board layouts compared to through-hole alternatives. Consider the 100 ohm ESR value for oscillator circuit stability. Verify that the 10 uW drive level is suitable for the connected load to prevent over-driving the crystal.

Crystals Part Context

This part belongs to the AV series of crystals produced by TXC Corporation. The series focuses on general-purpose timing applications requiring reliable frequency generation. The AV10070001 specifically addresses needs for 10 MHz references in consumer and industrial electronics. It complements other frequencies within the same physical package family.

Crystals Replacement Considerations

Direct substitutes include other 10 MHz SMD crystals with identical 12 pF load capacitance and compatible ESR values. Check pinout compatibility for the SMD-4 package. Verify that alternative manufacturers meet the same -40°C to +85°C operating temperature specifications.
