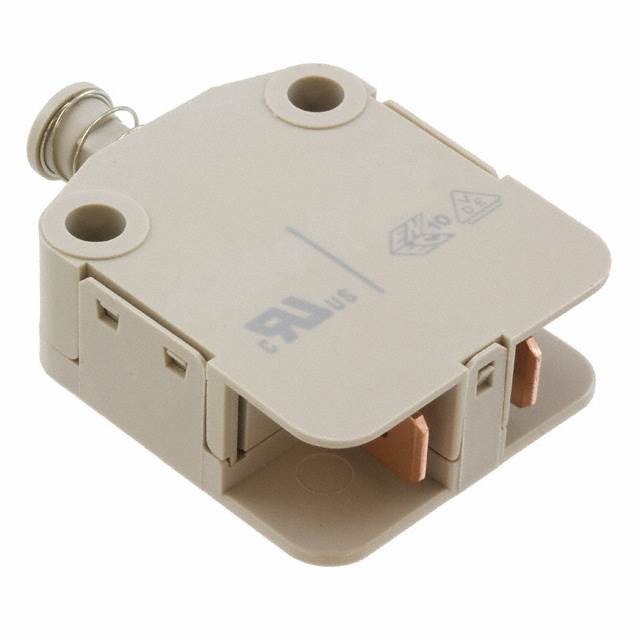

AV16653F

AV16653F is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is SWITCH SNAP ACT SPST-NO 10A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for AV16653F

• Description：SWITCH SNAP ACT SPST-NO 10A 125V
• Series：AV1
• Mfr：Panasonic Electric Works
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：10A (AC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：500gf
• Release Force：-
• Operating Position：0.500" (12.7mm)
• Pretravel：-
• Differential Travel：-
• Overtravel：0.083" (2.1mm)
• Operating Temperature：-25°C ~ 85°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for AV16653F
