AVP9014RM

Overview

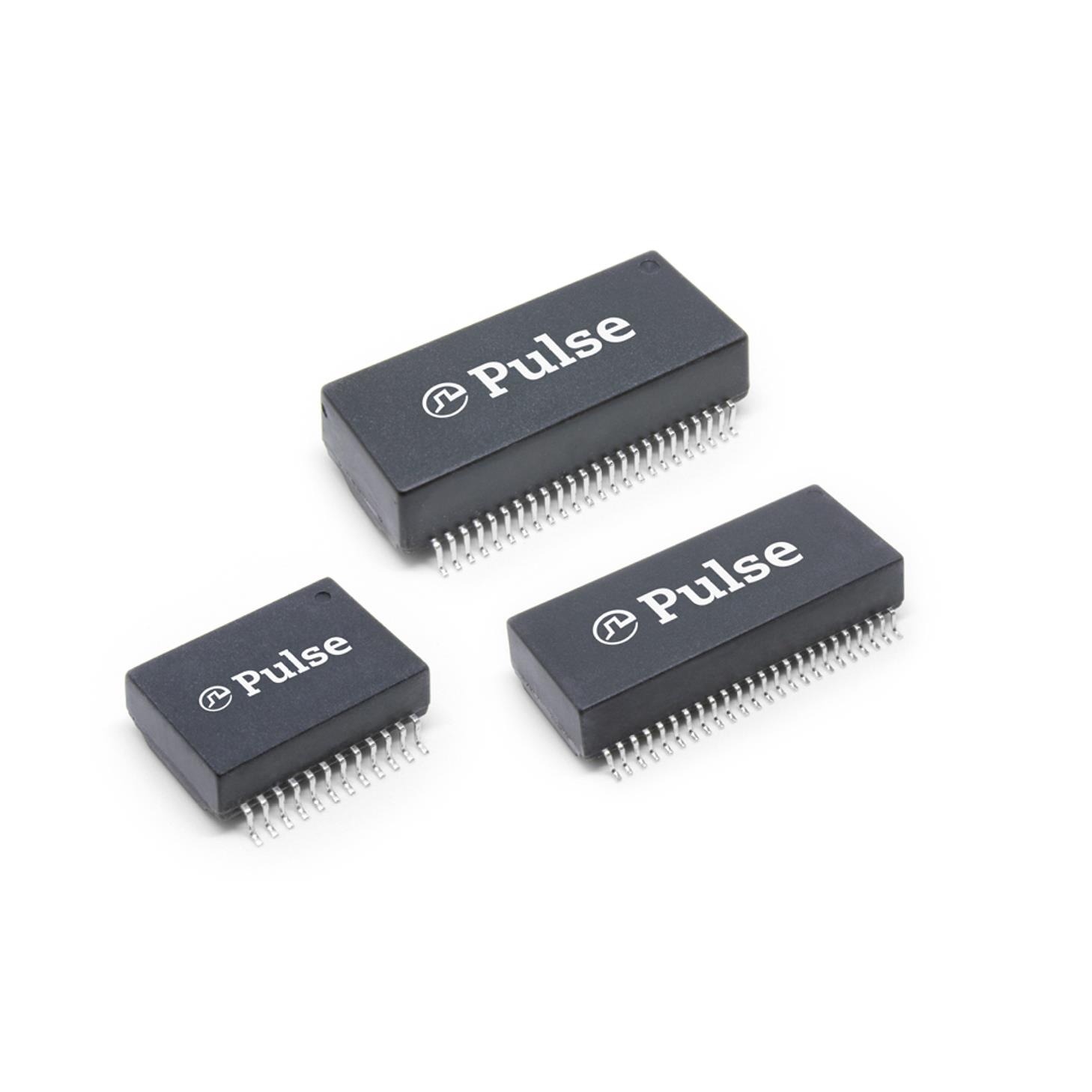

The AVP9014RM is a Pulse Electronics LAN Discrete Module designed for high-power Power over Ethernet applications. It supports 2.5 Gigabit data rates and accommodates 4-pair configurations within a single port architecture. The component delivers up to 90W of power capability, making it suitable for advanced PoE standards. It utilizes Surface Mount Device (SMD) termination for automated assembly integration. The module provides electrical isolation with an insulation voltage rating of 4 kVrms. Operating temperatures range from 0°C to +70°C. Physical dimensions are approximately 27.8 mm in length, 15.2 mm in width, and 7.2 mm in height.

Feature Summary

• Supports 2.5G data transmission speeds for enhanced network throughput
• Capable of handling 90W power delivery across four pairs
• Provides robust 4 kVrms electrical isolation for safety
• Designed for surface mount technology integration

Applications

• High-power PoE powered devices requiring 90W input
• 2.5 Gigabit Ethernet network infrastructure components
• Smart lighting systems with elevated power demands
• Advanced access points supporting multi-gigabit speeds

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging formats such as tape and reel or cut tape. Confirm that the manufacturer's standard lead time aligns with project schedules, as production cycles may vary. Ensure compliance with RoHS directives if environmental regulations apply to the final assembly. Cross-reference the datasheet for precise mechanical tolerances before finalizing the bill of materials.

Selection Notes

Select this module when designing circuits that require both 2.5G data integrity and high-wattage power delivery in a compact footprint. Evaluate thermal management requirements given the 90W power handling capacity. Ensure the PCB layout accommodates the specified SMD package dimensions. Compare against lower-power alternatives if the application does not strictly require 90W capabilities to optimize cost and space.

Part Context

This component belongs to the LAN Transformers category within Pulse Electronics' portfolio. It serves as a critical interface between the Ethernet PHY and the physical medium. The module integrates magnetics necessary for signal coupling and common-mode noise rejection. It replaces older discrete transformer solutions by consolidating functions into a single surface-mount unit.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical specifications carefully when considering alternative manufacturers. Check for equivalent isolation ratings and power handling capabilities to ensure functional parity.
