AVRF060V600MT102

Overview

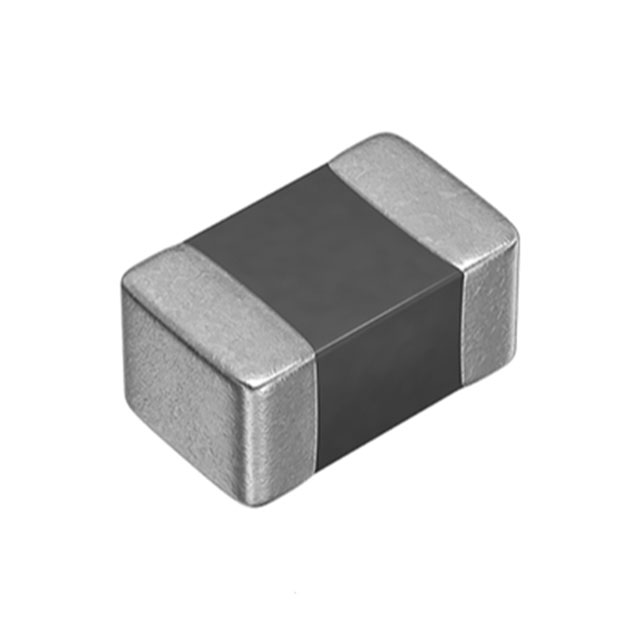

The AVRF060V600MT102 is a surface-mount EMI filter circuit from the TDK AVRF series, designed for electrostatic discharge (ESD) protection in low-voltage signal lines. It features a capacitance of 60 pF with a tolerance of ±20%, rated for a maximum DC input voltage of 3.5 VDC. The component exhibits an 8 kV ESD withstand capability and operates within a temperature range of -40°C to +85°C. Housed in a compact 0603 (1608 metric) package with dimensions of 1.6 mm x 0.8 mm x 0.5 mm, it utilizes SMD termination for automated PCB assembly.

Feature Summary

• Provides high-capacity ESD protection with 8 kV contact discharge rating
• Ultra-low capacitance design minimizes signal distortion in high-speed data lines
• Compact 0603 footprint enables dense board layout optimization
• AEC-Q100 qualified for automotive electronics reliability standards

Applications

• ESD protection for USB Type-C and USB 2.0/3.0 interfaces
• Signal line protection in mobile phone and tablet charging ports
• HDMI and DisplayPort interface noise suppression
• Audio jack and microphone input line filtering

Procurement Notes

Verify the specific suffix 'MT102' against the manufacturer's latest datasheet to confirm packaging configuration and tape-and-reel specifications. Ensure the ordering part number matches the required capacitance tolerance and voltage rating for the target application circuit. Cross-reference with official distributor catalogs to validate current production status and availability regions.

Selection Notes

Select this component when protecting low-voltage differential or single-ended signals requiring minimal parasitic capacitance. The 3.5 VDC rating suits logic-level interfaces such as USB and HDMI. Consider the 0603 package size for space-constrained designs. Verify that the 60 pF capacitance value does not violate the bandwidth requirements of the specific high-speed data protocol being protected.

Part Context

This device belongs to the TDK AVRF series of EMI notch filters, specialized for consumer electronics and automotive infotainment systems. It addresses the increasing demand for robust ESD protection in portable devices with frequent port usage. The series complements TDK's broader portfolio of passive components by offering integrated solutions for signal integrity and transient suppression in compact form factors.

Replacement Considerations

Consult TDK's official substitution guide for equivalent parts within the AVRF series. Verify pin compatibility and electrical parameters before replacing with generic ESD diodes or capacitors. Ensure any substitute maintains the 60 pF capacitance and 3.5 VDC rating to prevent signal degradation or component failure.
