AVRF101U6R8KT242

Overview

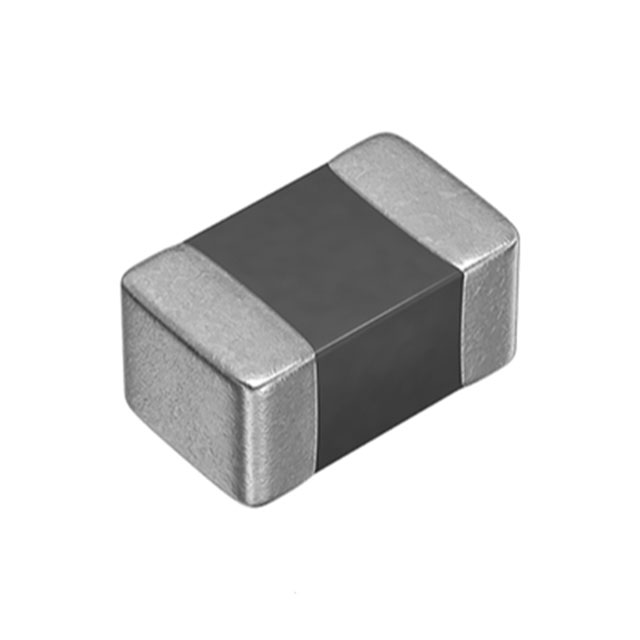

The AVRF101U6R8KT242 is a TDK EMI filter circuit component designed for audio line applications. It features a capacitance of 6.8 pF with a tolerance of ±10%. The device supports a maximum DC voltage of 28V and operates within a temperature range of -40°C to +85°C. Packaged in an SMD/SMT 0402 (1005 metric) format, it provides ESD protection compliant with IEC61000-4-2 Level 4 standards.

Feature Summary

• Provides combined ESD and EMI protection for sensitive audio lines
• Highly effective against burst noise including TDMA/TDD interference
• Optimized for maintaining reception sensitivity in mobile devices

Applications

• Audio line protection in mobile communication devices
• ESD mitigation for high-frequency signal interfaces
• Burst noise suppression in consumer electronics

Procurement Notes

Verify the specific datasheet version and RoHS compliance status prior to integration. Confirm that the 0402 package dimensions align with your PCB footprint requirements. Ensure the 28VDC rating meets the operational voltage constraints of the target circuit design.

Selection Notes

Select this component when compact EMI filtering is required for low-capacitance audio signals. The 6.8pF value minimizes signal distortion while offering robust protection against electrostatic discharge events defined by international safety standards.

Part Context

This part belongs to the TDK AVRF series of ESD notch filters. These components are engineered specifically for protecting high-speed data and audio lines in portable electronic devices where space is limited and signal integrity is critical.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
