AVRF161Q861LT201

$0.37

Description：FILTER 860PF ESD SURFACE MOUNT
Series：AVRF
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c983589a83bf Category: EMI/RFI Filters (LC, RC Networks) Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER 860PF ESD SURFACE MOUNT
Series：AVRF
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Type：-
Filter Order：-
Technology：-
Number of Channels：-
Center / Cutoff Frequency：-
Attenuation Value：-
Resistance - Channel (Ohms)：-
Values：C = 860pF
ESD Protection：Yes
Operating Temperature：-40°C ~ 85°C
Applications：-
Voltage - Rated：19V
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric)
Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
Height：0.035" (0.90mm)
Current：-

Download product information

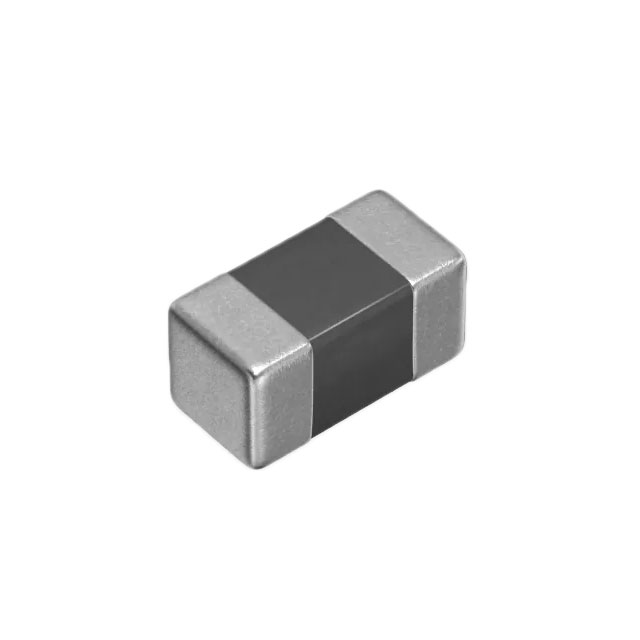

AVRF161Q861LT201

Overview

The AVRF161Q861LT201 is an ESD notch filter manufactured by TDK Corporation, designed for surface-mount applications in the 0603 (1608 Metric) package. It features a capacitance of 860 pF and a rated voltage of 19 VDC. The component operates within a temperature range of -40°C to +85°C and complies with AEC-Q200 standards. It utilizes SMD/SMT termination types and is available in reel, cut tape, and MouserReel packaging formats.

Feature Summary

Suppresses TDMA noise generated by wireless communications
Improves receiver sensitivity for wireless communication systems

Applications

Wireless communication circuits requiring EMI suppression
Mobile devices needing improved receiver sensitivity
Automotive electronics compliant with AEC-Q200 standards

Procurement Notes

Verify the complete part number including suffixes to ensure correct packaging and specifications. Confirm AEC-Q200 compliance requirements if used in automotive contexts. Check datasheet for specific reflow soldering profiles suitable for the 0603 package. Ensure operating voltage does not exceed 19 VDC limits.

Selection Notes

Select this component when space-constrained designs require 0603 footprint EMI filtering. Consider the 860 pF capacitance value for specific frequency notch requirements. Verify thermal stability needs against the -40°C to +85°C operating range. Ensure compatibility with standard surface-mount assembly processes.

Part Context

This component belongs to TDK's AVRF series of ESD notch filters. These components are specifically engineered to address electromagnetic interference issues in compact electronic devices. The series supports various capacitance values and package sizes to meet diverse design constraints.

Replacement Considerations

Consult official TDK documentation for qualified substitute part numbers within the AVRF series. Verify pinout compatibility and electrical parameter equivalence before substitution.
