AVTXAIG-13-A-26.000MHZ-E05-T3

Oscillators Overview

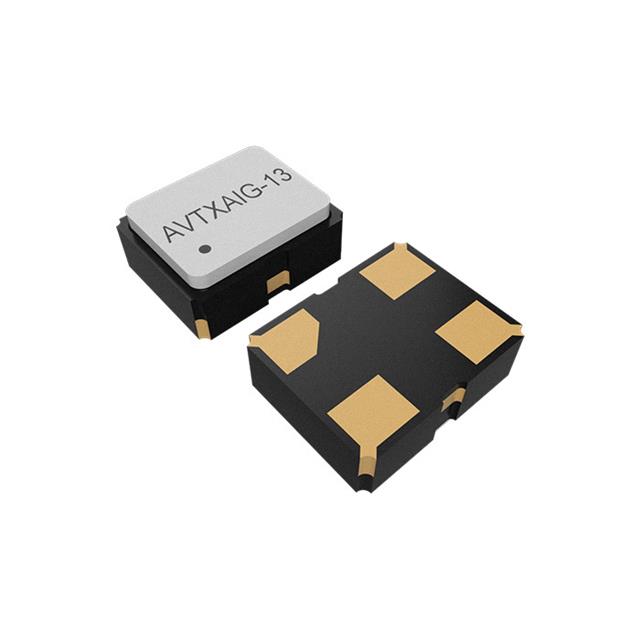

The Abracon AVTXAIG-13-A-26.000MHZ-E05-T3 is a Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO) operating at a nominal frequency of 26 MHz. It features a clipped sine wave output format and operates within a supply voltage range of 2.7 V to 3.6 V. The device provides high frequency stability with a total stability of ±1.5 ppm over the full temperature range of -40°C to +85°C. Aging is specified at ±0.5 ppm per year for the first decade. The oscillator is housed in a compact 4-SMD, no lead package measuring 2.0 mm by 1.6 mm.

Oscillators Feature Summary

• Integrated voltage control function compatible with PLL circuits for precise frequency tuning
• High frequency stability maintained across wide industrial temperature variations
• Ultra-miniature surface mount package designed for space-constrained applications
• Compliant with RoHS reflow soldering profiles for standard manufacturing processes

Oscillators Applications

• Wireless communication modules requiring stable carrier frequencies
• Portable electronic devices with limited board real estate
• GPS receiver systems needing precise timing references
• Industrial control equipment operating in variable thermal environments

Oscillators Procurement Notes

Verify the specific output load requirements and control voltage range against your system design before procurement. Confirm that the supplier provides genuine Abracon products with valid traceability documentation. Ensure the ordering suffix matches the required tape and reel specifications for automated assembly. Check for any regional distribution restrictions or lead time variations associated with this specific part number.

Oscillators Selection Notes

Select this component when a balance between high stability and small footprint is required. The clipped sine output is suitable for driving subsequent logic stages or mixers directly. Consider the power consumption and current draw during active operation to ensure it fits within the system's thermal budget. Evaluate the need for voltage control against fixed-frequency alternatives if tuning is not necessary for the application.

Oscillators Part Context

This model belongs to the AVTX series of ultra-miniature oscillators from Abracon. It represents a specialized variant combining temperature compensation with voltage control capabilities. The series is engineered for modern electronics where size constraints are critical without compromising signal integrity or frequency accuracy.

Oscillators Replacement Considerations

Direct substitutes must match the 26 MHz frequency, 4-SMD 2x1.6mm package, and clipped sine output. Verify compatibility of the control voltage range and stability specifications. Cross-reference with other Abracon AVTX variants or competitor VCTCXOs ensuring identical pinout and electrical characteristics.
