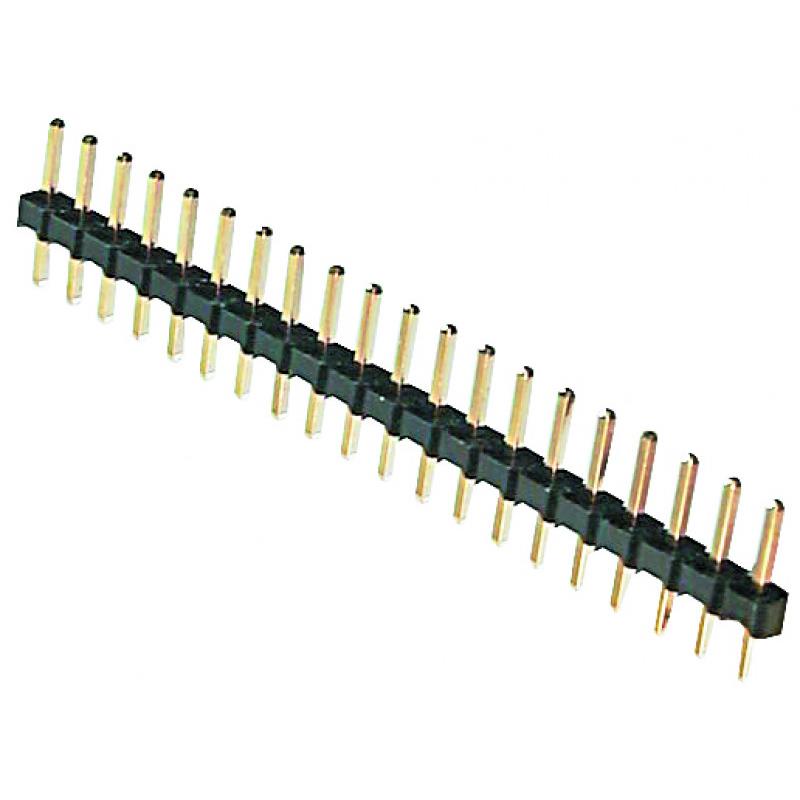

AW 110/23-T

$0.26

Description：PIN HEADER, 4.7/3MM, 2.54MM
Series：AW
Mfr：Assmann WSW Components
Package：Bag

SKU:8fc6002e9ec6 Category: Headers, Male Pins Brand: Assmann WSW Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PIN HEADER, 4.7/3MM, 2.54MM
Series：AW
Mfr：Assmann WSW Components
Package：Bag
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：23
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.185" (4.70mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：0.362" (9.20mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：-

Download product information

AW 110/23-T

Overview

The AW 110/23-T is a rectangular connector header manufactured by Assmann WSW Components. It features 23 positions with a 0.100-inch (2.54mm) pitch. The component utilizes through-hole termination for secure board mounting. Contact surfaces are gold-plated to ensure reliable signal transmission. The housing is constructed from polybutylene terephthalate (PBT). Rated current is 1.5A at 250V. Operating temperature ranges from -40°C to 105°C.

Feature Summary

Gold-plated male pin contacts for enhanced conductivity
Polybutylene terephthalate insulation material
Through-hole mounting style for PCB integration

Applications

General electronic interconnects
Industrial control systems
Consumer electronics assemblies

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm pin count and contact plating specifications. Ensure compatibility with mating socket connectors regarding pitch and row configuration. Check for RoHS compliance status if required by project regulations. Confirm lead length requirements for the intended PCB assembly process.

Selection Notes

Select this component when a 23-position male header is required for board-to-board or cable connections. The 2.54mm pitch ensures compatibility with standard industry spacing. Consider the 1.5A current rating and 250V voltage limit for circuit design constraints. Verify that the through-hole installation method aligns with the manufacturing capabilities of the target printed circuit board.

Part Context

This part belongs to the AW series of headers produced by Assmann WSW Components. The series offers various position counts and configurations for different connectivity needs. The AW 110/23-T specifically addresses applications requiring a moderate density connection point with robust mechanical stability and electrical reliability.
