AW-26.000MBE-T

Oscillators Overview

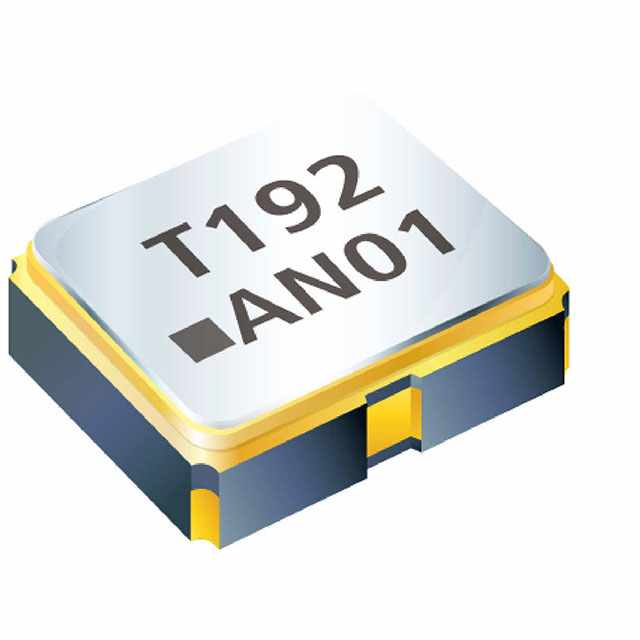

The AW-26.000MBE-T is a CMOS crystal oscillator (XO) manufactured by TXC Corporation, operating at a frequency of 26 MHz with ±50 ppm stability. It functions on a 3.3V supply voltage and features an enable/disable control function. The device supports a maximum supply current of 15 mA and operates within a temperature range of -40°C to +85°C. It is housed in a compact 4-SMD, no-lead package measuring 2.50mm x 2.00mm with a height of 0.90mm. The component meets AEC-Q100 automotive standards and complies with RoHS3 regulations.

Oscillators Feature Summary

• Integrated enable/disable functionality for power management
• Automotive-grade reliability certified under AEC-Q100 standards
• CMOS output signal suitable for digital logic interfaces
• Compact surface-mount design optimized for space-constrained PCB layouts

Oscillators Applications

• Wireless Local Area Network (WLAN) modules
• Bluetooth communication devices
• Digital Still Cameras (DSC)
• Digital Subscriber Line (DSL) equipment
• General IT product clocking applications

Oscillators Procurement Notes

Verify the specific suffix 'T' indicates tape and reel packaging configuration when placing orders. Confirm that the AEC-Q100 qualification aligns with target automotive application requirements. Ensure the 3.3V supply voltage matches the system design constraints. Check for updated datasheet revisions to confirm pinout and electrical characteristics remain consistent with current production batches.

Oscillators Selection Notes

Select this component when a 26 MHz CMOS clock source with low power consumption is required. The enable/disable feature allows for dynamic power saving in battery-operated systems. The small 2.50mm x 2.00mm footprint is ideal for dense circuit board designs. Consider the ±50 ppm stability if tighter frequency tolerance is not critical for the application timing requirements.

Oscillators Part Context

This oscillator belongs to the AW series from TXC Corporation, designed for ultra-small SMD seam-sealed clock applications. It shares functional similarities with the 8W series but offers distinct dimensional advantages. The part is actively listed as being in production, ensuring long-term availability for embedded system designs requiring stable high-frequency references.

Oscillators Replacement Considerations

The 8W-26.000MBA-T and 8W-26.000MBB-T are documented as similar substitutes from the same manufacturer. These alternatives may differ in physical dimensions or specific electrical parameters, requiring verification of mechanical fit and performance compatibility before integration.
