Product Detailed Parameters
- Description：PIN- & FEMALE HEADER MALE THT 2
- Series：AW140
- Mfr：Assmann WSW Components
- Package：Bag
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：38
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.224" (5.70mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.441" (11.20mm)
- Insulation Height：0.098" (2.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polybutylene Terephthalate (PBT)
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A per Contact
- Voltage Rating：250VAC/DC
Download product information
Overview

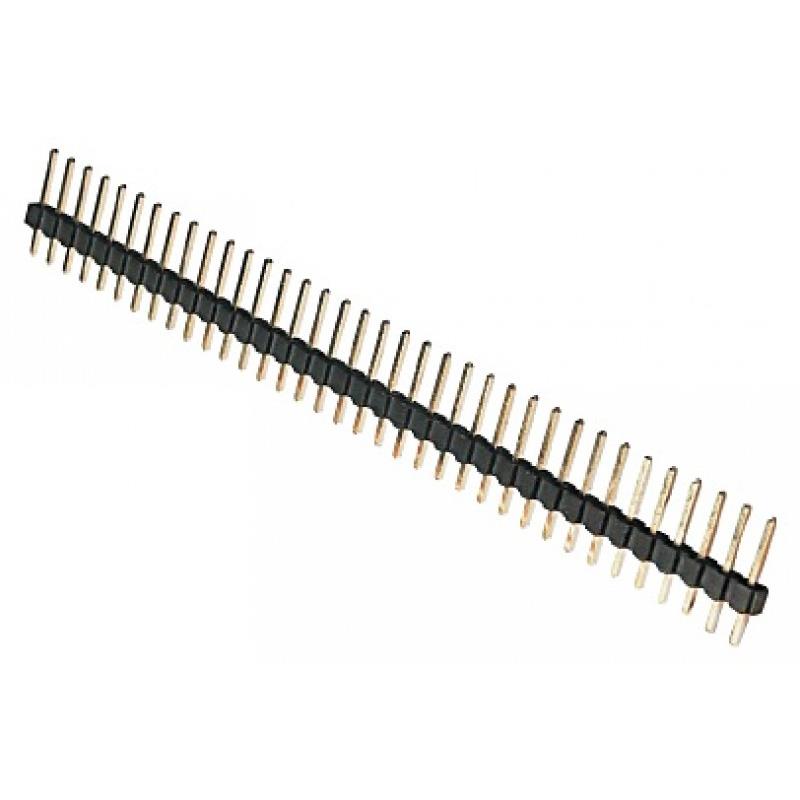

AW140-EG-Z38D is a pin header connector from the AW140 series manufactured by Assmann WSW Components. It features a 2.54 mm pitch and contains 38 positions arranged in a single row. The component utilizes gold flash plating on its contacts to ensure reliable conductivity. Designed for through-hole mounting, it offers a right-angled orientation suitable for board-to-board connections. The housing material is polybutylene terephthalate, providing structural integrity.
Feature Summary
- Right-angled design facilitates compact board-to-board interconnections
- Gold flash contact plating ensures durable electrical performance
- Single-row configuration with standard 2.54 mm spacing
Applications
- Board-to-board connectivity in electronic assemblies
- General-purpose signal routing in industrial equipment
- Integration within custom connector harnesses
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count and mechanical dimensions. Ensure compatibility with mating connectors regarding pitch and row configuration. Confirm that the right-angled orientation meets the spatial requirements of the target PCB layout before finalizing procurement.
Selection Notes
Select this component when a right-angled, single-row header with 38 positions is required. The 2.54 mm pitch is standard for general electronics. Verify that the through-hole mounting style aligns with the PCB manufacturing capabilities. Consider the gold flash plating if corrosion resistance or low contact resistance is critical for the application environment.
Part Context
The AW140 series represents a line of standard pin headers offered by Assmann WSW Components. This series provides various configurations including straight and right-angled options with different pin counts. The AW140-EG-Z38D specifically denotes the right-angled variant with 38 pins, fitting into the broader portfolio of connectivity solutions designed for reliable electronic interconnection.
Replacement Considerations
Compatible substitutes include other 38-position, 2.54 mm pitch right-angled pin headers from Assmann WSW or equivalent manufacturers. Ensure the replacement maintains the same single-row structure and through-hole termination style. Verify that the mating connector interface matches the original specifications.
