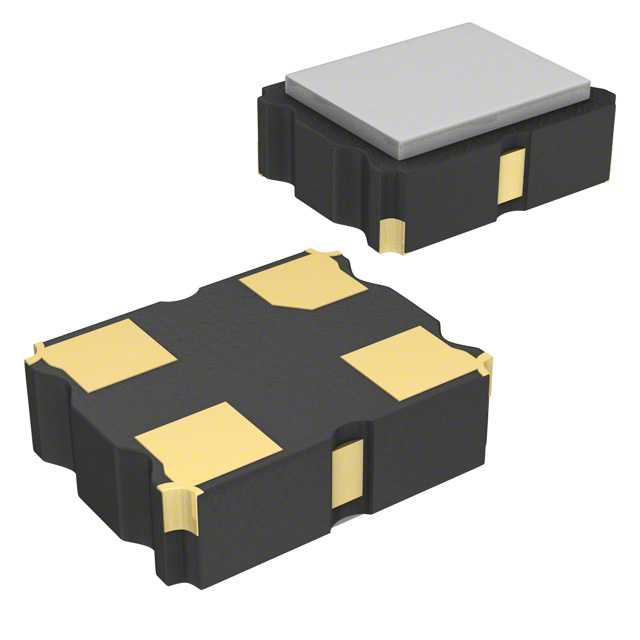

AW25070504 is listed in the Oscillators range at ChipApex. The manufacturer field lists TXC CORPORATION. Its product description is XTAL OSC XO 25MHZ 3.3V CMOS SMD. Review the specifications below when checking this part for your BOM.
Oscillators specifications for AW25070504
- Description：XTAL OSC XO 25MHZ 3.3V CMOS SMD
- Series：AW
- Mfr：TXC CORPORATION
- Package：Tape & Reel (TR),Cut Tape (CT)
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：25 MHz
- Function：Enable/Disable
- Output：CMOS
- Voltage - Supply：1.8V ~ 3.3V
- Frequency Stability：±50ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 125°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：5mA
- Ratings：AEC-Q100
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max)：0.035" (0.90mm)
- Supplier Device Package：-
Oscillators datasheet and documents for AW25070504
Oscillators Overview
The AW25070504 is a crystal oscillator (XO) manufactured by TXC Corporation. It operates at a frequency of 25 MHz and utilizes CMOS output logic. The device is designed for surface-mount device (SMD) applications and functions with a supply voltage of 3.3 V. The component is RoHS compliant, indicating adherence to environmental standards regarding restricted hazardous substances in electronic equipment.
Oscillators Feature Summary
- CMOS output interface for digital signal compatibility
- Surface-mount construction for automated assembly
- RoHS compliant manufacturing process
Oscillators Applications
- Digital clock generation
- Microprocessor timing references
- Communication interface synchronization
Oscillators Procurement Notes
Verify the specific package dimensions and pin configuration against the official datasheet before integration. Confirm that the 3.3V supply requirement aligns with the target circuit design. Ensure the RoHS compliance status meets current regulatory requirements for the intended market. Cross-reference the manufacturer part number to avoid confusion with similar variants.
Oscillators Selection Notes
Select this component when a stable 25 MHz reference is required for CMOS-based digital systems. Consider the SMD form factor for space-constrained PCB layouts. Evaluate the 3.3V operating voltage against available power rails. Assess thermal performance and stability needs relative to the application environment.
Oscillators Part Context
TXC Corporation specializes in frequency control products, including crystal units and oscillators. The AW series represents their line of surface-mount oscillators designed for high reliability. This model fits within their portfolio of solutions offering wide temperature range capabilities and low power consumption for modern electronics.
Oscillators Replacement Considerations
Consult the official TXC Corporation documentation for direct substitute part numbers. Verify electrical parameters such as frequency tolerance and load capacitance when evaluating alternatives. Ensure mechanical footprint compatibility if replacing on existing hardware.
