AWBC-05

Overview

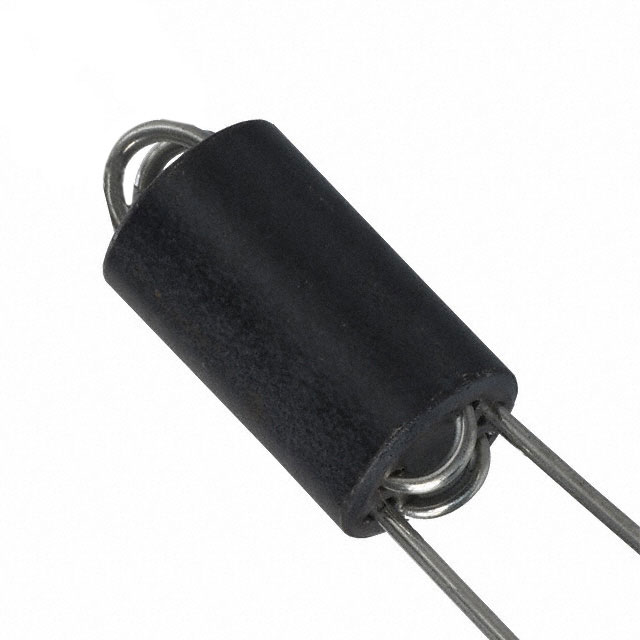

The AWBC-05 is a radial ferrite bead from Abracon LLC, designed for power line filtering applications. It provides an impedance of 550 Ohms at 100 MHz and supports one signal line. The component utilizes a through-hole axial package with printed wiring pins, ensuring robust construction suitable for EMI/RFI suppression in general-purpose circuits.

Feature Summary

• Rugged construction for high reliability
• Effective EMI/RFI suppression capabilities
• Compliance with FCC, VDE, CSA, CE, and VCCI standards

Applications

• Power line filtering
• EMI suppression
• General-purpose inductor circuits

Procurement Notes

Verify the specific part number AWBC-05 against official Abracon documentation to confirm impedance characteristics and physical dimensions. Ensure compatibility with existing PCB layouts requiring radial through-hole mounting. Check for RoHS compliance status as indicated in current datasheets before finalizing procurement decisions.

Selection Notes

Select this component when designing circuits requiring effective broadband noise suppression on single-line power paths. Consider its radial form factor for through-hole assembly processes. Evaluate the 550 Ohm impedance specification against target frequency ranges to ensure adequate attenuation performance for specific electromagnetic interference challenges.

Part Context

This ferrite bead belongs to the AWBC series, which includes wide band choke components manufactured by Abracon. These parts are engineered for general-purpose applications rather than specialized military or aerospace environments. The series emphasizes durability and regulatory compliance for industrial and commercial electronics.

Replacement Considerations

Consult official Abracon documentation for verified substitute part numbers within the AWBC series or equivalent ferrite beads from other manufacturers that match the 550 Ohm @ 100 MHz impedance and radial package specifications.
