AWCM001106052N4B00

Fixed Inductors Overview

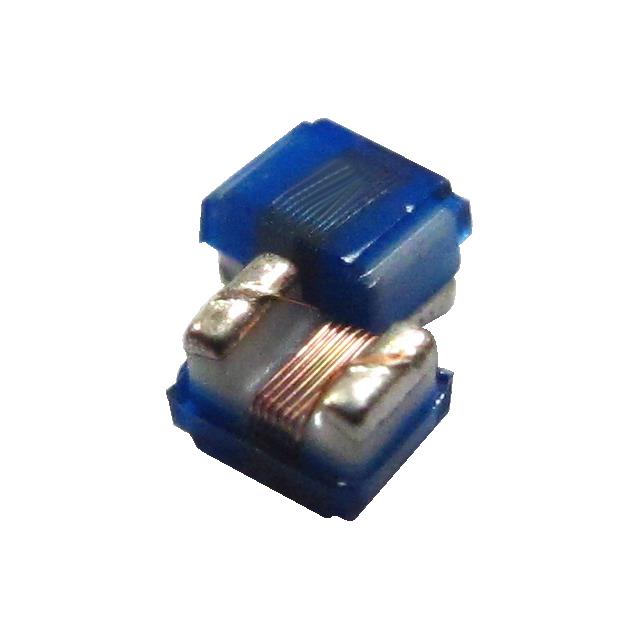

The AWCM001106052N4B00 is a fixed wire wound inductor from Pulse Electronics, designed for surface mount applications. It features an unshielded drum core construction with a nominal inductance of 2.4 nH. The component supports a maximum DC current of 850 mA and maintains a maximum DC resistance of 50 mOhm. Housed in a compact 0402 (1005 Metric) package, it is suitable for high-frequency circuits requiring precise impedance matching or filtering.

Fixed Inductors Feature Summary

• Wire wound construction utilizing an unshielded drum core design
• Surface mount compatibility within a standard 0402 footprint
• Optimized for high current handling in non-isolated converter topologies

Fixed Inductors Applications

• High current non-isolated DC/DC converters
• Voltage regulator input/output filtering
• RF signal path impedance matching

Fixed Inductors Procurement Notes

Verify the exact inductance value against official datasheets, as conflicting data exists between 2.4 nH and 330 uH sources. Confirm package dimensions match the 0402 specification. Ensure the supplier provides traceable documentation for AEC-Q200 compliance if automotive qualification is required. Cross-reference manufacturer part numbers to avoid substitution errors.

Fixed Inductors Selection Notes

Select this component when space constraints necessitate a 0402 SMD form factor. Consider the low inductance value for high-frequency applications rather than power storage. Evaluate the 850 mA current rating against peak load requirements. Verify thermal performance under continuous operation conditions. Compare alternative shielded options if electromagnetic interference mitigation is critical.

Fixed Inductors Part Context

This inductor belongs to Pulse Electronics' power inductor portfolio, targeting compact electronic designs. It complements other SMD components by providing stable inductive properties in minimal board space. The product line emphasizes reliability for consumer and industrial electronics requiring robust passive components.

Fixed Inductors Replacement Considerations

Check for direct substitutes with identical 2.4 nH inductance and 0402 footprint. Verify pinout compatibility and mechanical height restrictions. Ensure replacement parts meet the same 850 mA current and 50 mOhm resistance specifications.
