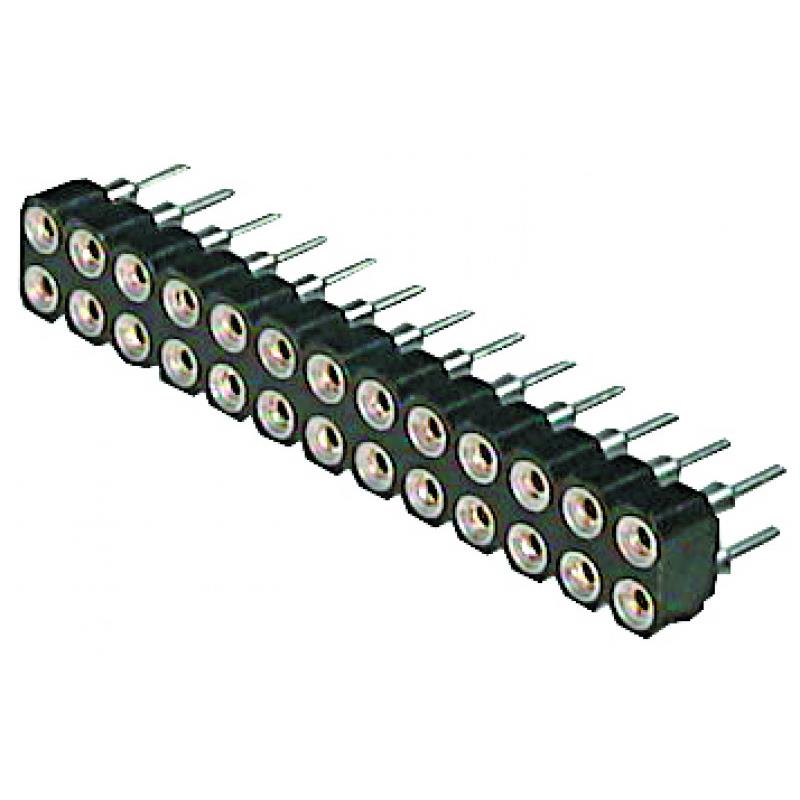

AWD 127/70/Z-T

$1.49

Description：FEMALE HEADER, MACHINED PIN, 2.5
Series：AWD 127
Mfr：Assmann WSW Components
Package：Bag

SKU:90d5f5378678 Category: Headers, Receptacles, Female Sockets Brand: Assmann WSW Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AWD 127/70/Z-T is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Assmann WSW Components. Its product description is FEMALE HEADER, MACHINED PIN, 2.5. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for AWD 127/70/Z-T

Description：FEMALE HEADER, MACHINED PIN, 2.5
Series：AWD 127
Mfr：Assmann WSW Components
Package：Bag
Connector Type：Header
Contact Type：Female Socket
Style：Board to Board
Number of Positions：70
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Insulation Color：Black
Insulation Height：0.118" (3.00mm)
Contact Length - Post：0.110" (2.79mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A per Contact
Voltage Rating：100VAC, 150VDC

Headers, Receptacles, Female Sockets datasheet and documents for AWD 127/70/Z-T

AWD 127/70/Z-T

Headers, Receptacles, Female Sockets Overview

The AWD 127/70/Z-T is a 70-position female header connector manufactured by Assmann WSW Components. It features machined pin contacts with gold plating and a 2.54mm (0.100 inch) pitch. Designed for through-hole mounting, this single-row connector supports board-to-board interconnections. The unit operates within a temperature range of -40°C to +105°C and utilizes a polybutylene terephthalate housing rated UL 94 V-0.

Headers, Receptacles, Female Sockets Feature Summary

Machined pin contact construction ensures reliable electrical performance
Gold-plated terminals provide corrosion resistance and low contact resistance
Through-hole termination method facilitates secure PCB integration

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnection systems
Industrial control module interfaces
Electronic equipment signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm terminal plating specifications and housing material properties. Ensure that the selected component variant aligns precisely with the required mechanical footprint and thermal operating limits defined in the approved datasheet before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density 70-position interface is required for rigid PCB assemblies. Evaluate the through-hole mounting profile against available board space constraints. Confirm that the gold-plated contact specification meets the necessary conductivity requirements for the intended signal transmission application.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the AW 127 series of rectangular connectors from Assmann WSW Components. The series offers various position counts and row configurations. This specific model represents a high-pin-count female header option designed for robust electronic interconnect applications requiring precise alignment and durability.
