AWDH2416N4SS

Overview

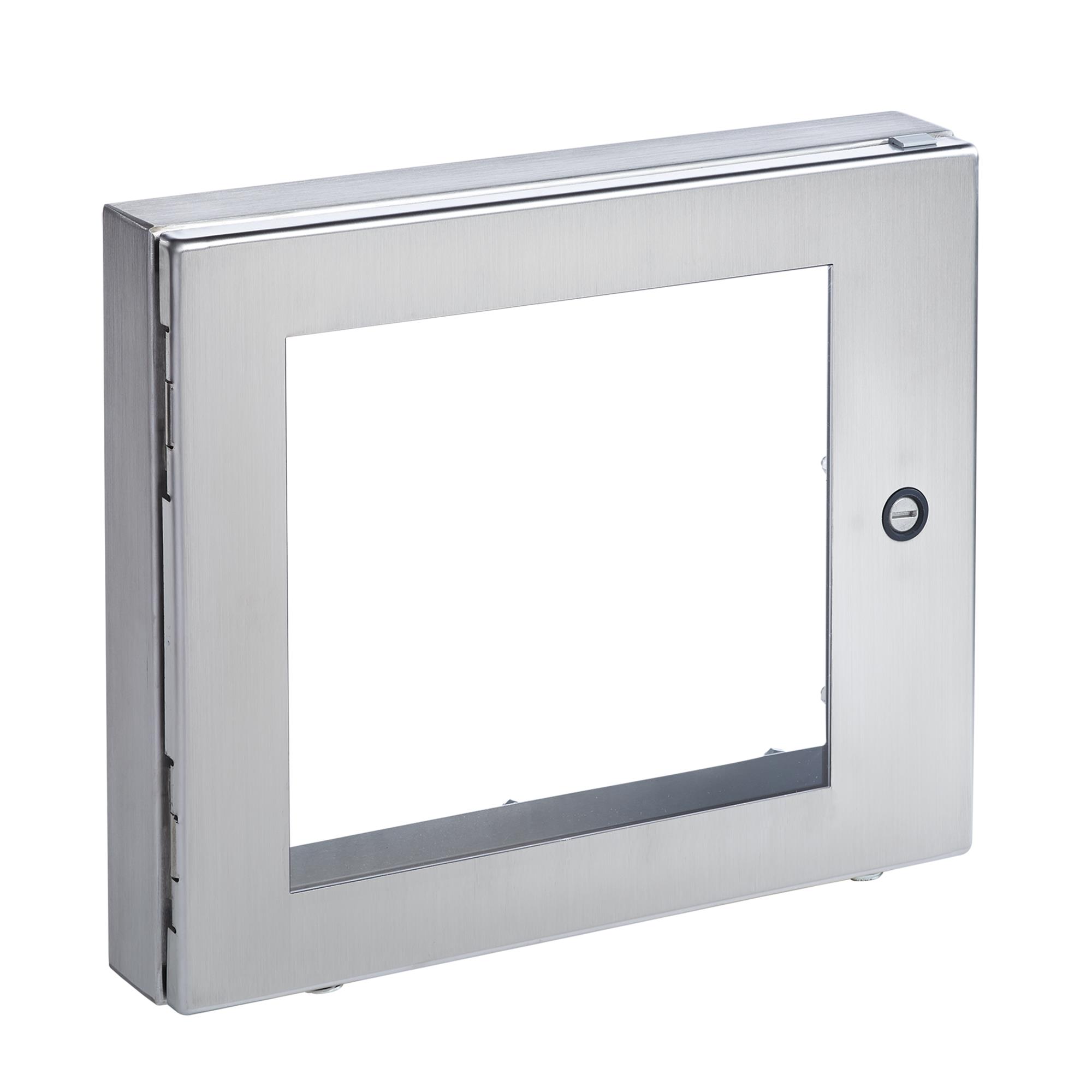

The AWDH2416N4SS is a stainless steel deep-hinged window door kit manufactured by nVent Hoffman. Designed for Type 4X applications, it features a 2.5-inch (64 mm) depth to accommodate deep control components within enclosures. The unit includes a built-in gasket compression stop on the rear of the window kit to facilitate flush installation. Constructed from stainless steel, this component provides enhanced durability and corrosion resistance suitable for harsh industrial environments requiring high ingress protection standards.

Feature Summary

• Constructed from stainless steel for superior corrosion resistance
• Features a 2.5-inch depth to support deep internal controls
• Includes a built-in gasket compression stop for flush mounting

Applications

• Industrial control panels requiring Type 4X protection
• Enclosures housing deep-mounted electronic components
• Harsh environment installations demanding stainless steel construction

Procurement Notes

Verify that the base enclosure model is compatible with the AWDH series window kits. Confirm that the enclosure depth accommodates the 2.5-inch profile of this specific hinged door assembly. Ensure the application requires Type 4X rating and stainless steel material specifications before procurement.

Selection Notes

Select this component when standard depth doors are insufficient for internal control clearance. Choose stainless steel over aluminum or polycarbonate if chemical exposure or washdown conditions are present. Verify that the enclosure frame supports the specific mounting requirements for the AWDH series hinge mechanism.

Part Context

This part belongs to the AWDH series of window door kits designed for Hoffman enclosures. It serves as a replacement or upgrade option for standard doors in applications requiring deeper internal clearance. The stainless steel variant offers higher environmental protection compared to non-metallic alternatives.

Replacement Considerations

Ensure the existing enclosure frame matches the dimensions required for the AWDH series. Verify that the previous door did not require modifications incompatible with the new gasket compression stop design.
