AWHP00161008R25H00

Fixed Inductors Overview

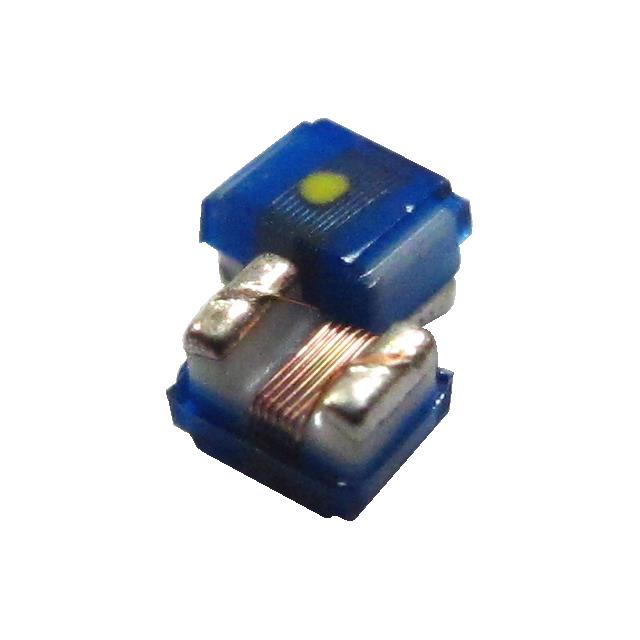

The AWHP00161008R25H00 is an unshielded surface-mount RF inductor from the Pulse Electronics AWHP series. It features a wire-wound construction on a ceramic core with dimensions of 1.6 mm x 1 mm x 0.82 mm. The component provides an inductance of 250 nH with a tolerance of ±3%. It has a maximum DC resistance of 1.7 Ohms and a saturation current of 240 mA. The minimum Q factor is 35 at a test frequency of 100 MHz, with a self-resonant frequency of 990 MHz. It operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Wire-wound construction on a ceramic core for stable high-frequency performance
• Unshielded design suitable for general RF circuit applications
• AEC-Q200 qualified for automotive reliability standards

Fixed Inductors Applications

• RF signal processing circuits
• Automotive electronics systems
• High-frequency filtering applications

Fixed Inductors Procurement Notes

Verify the specific electrical parameters against the official manufacturer datasheet prior to integration. Confirm that the AEC-Q200 qualification aligns with target automotive requirements. Ensure the physical footprint matches the PCB layout constraints. Check RoHS compliance status for environmental regulations. Validate the operating temperature range against system thermal conditions.

Fixed Inductors Selection Notes

Select this component when a 250 nH inductance value is required in a compact 0603-style package. The unshielded nature necessitates careful layout planning to minimize electromagnetic interference. Consider the saturation current limit of 240 mA for power handling capabilities. The ceramic core offers stability compared to other core materials. Verify compatibility with standard SMT reflow processes.

Fixed Inductors Part Context

This part belongs to the AWHP series of RF inductors manufactured by Pulse Electronics. The series is characterized by its small form factor and suitability for high-frequency applications. The AWHP designation indicates specific construction details including the wire-wound type and ceramic core material. This model represents a specific inductance value within the broader product line.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are available.
