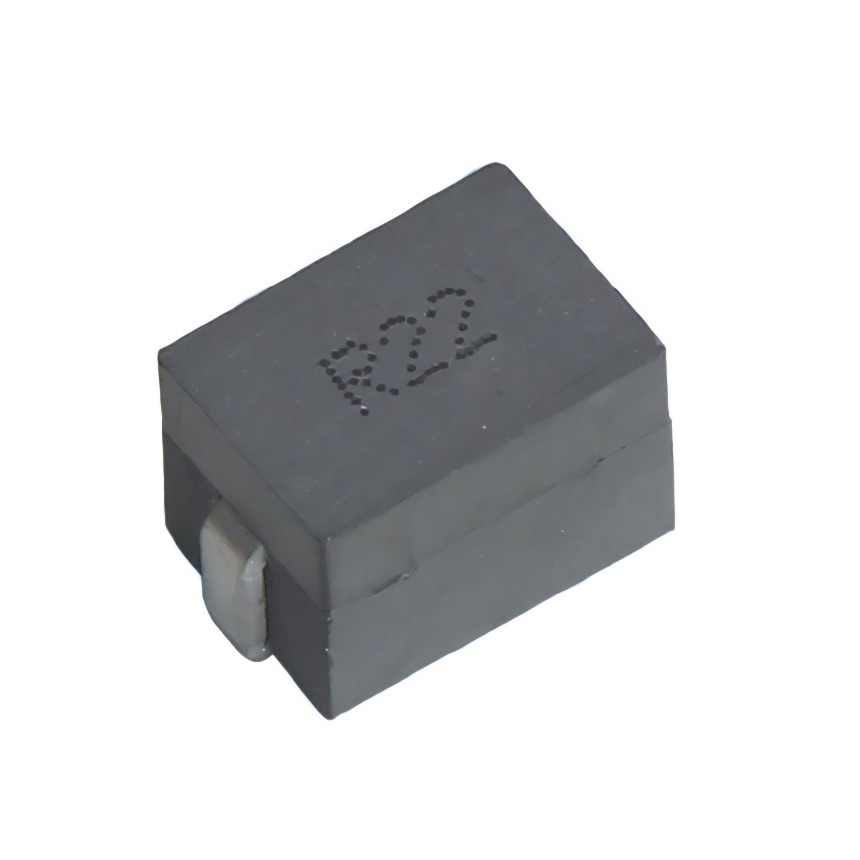

AWSIHH070707-R22L-R29 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists AW Coil. Its product description is FIXED IND 220NH 35A 0.29mOhm SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for AWSIHH070707-R22L-R29
- Description：FIXED IND 220NH 35A 0.29mOhm SMD
- Series：AWSIHH
- Mfr：AW Coil
- Package：Tape & Reel (TR)
- Type：Molded
- Material - Core：-
- Inductance：220 nH
- Tolerance：±15%
- Current Rating (Amps)：35 A
- Current - Saturation (Isat)：29A
- Shielding：Shielded
- DC Resistance (DCR)：0.29Ohm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.276" L x 0.276" W (7.00mm x 7.00mm)
- Height - Seated (Max)：0.295" (7.50mm)
- Features：-
Fixed Inductors datasheet and documents for AWSIHH070707-R22L-R29
Fixed Inductors Overview
The AWSIHH070707-R22L-R29 is a shielded molded inductor from the AW Coil AWSIHH platform. It features an inductance of 330 nH, a rated current of 35 A, and a DC resistance of 0.29 Ohm. The component utilizes a nonstandard form factor designed for high-current applications with low loss characteristics.
Fixed Inductors Feature Summary
- Shielded molded construction
- High-current capability
- Low loss design
Fixed Inductors Applications
- Power supply circuits
- High-current filtering
- DC-DC converter stages
Fixed Inductors Procurement Notes
Verify specifications against the official AW COIL datasheet linked to the exact product record. Ratings and dimensions must be validated directly from the controlling technical document before integration. Confirm part identification matches the specific suffix requirements.
Fixed Inductors Selection Notes
Select this component for applications requiring high current handling within a shielded molded package. Ensure the 330 nH value aligns with circuit design needs. Validate thermal performance and physical dimensions against the system constraints prior to final selection.
Fixed Inductors Part Context
This part belongs to the AWSIHH series of fixed inductors manufactured by AW Coil. The series focuses on precision-engineered coils for demanding power electronics environments. The specific model denotes a 330 nH variant within this high-current lineup.
Fixed Inductors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires direct comparison with the manufacturer's official datasheet to ensure electrical and mechanical compatibility.
