AWVH002016101R0TH1

Fixed Inductors Overview

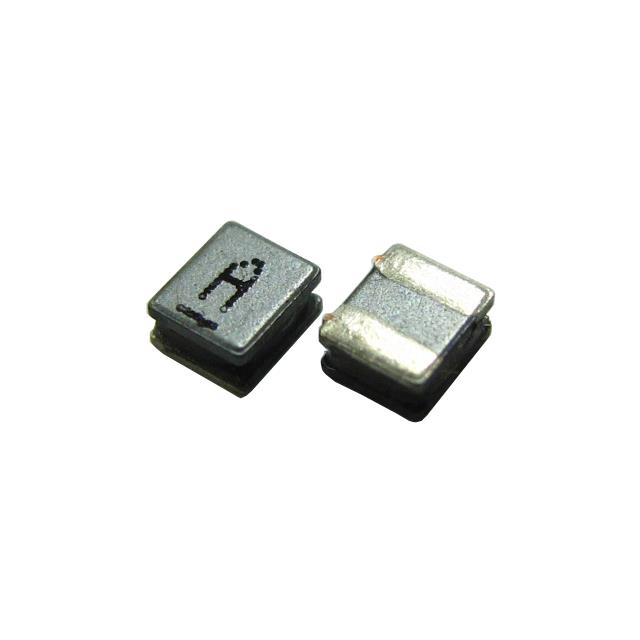

The AWVH002016101R0TH1 is a surface-mount power inductor manufactured by Pulse Electronics. It features a closed magnetic circuit design and utilizes ferrite core material for efficient energy storage. The component measures 2 mm x 1.6 mm x 1.02 mm, fitting the standard 0805 footprint. It offers an inductance of 1 µH with a tolerance of ±30%. The device supports a saturation current of 2 A and a maximum continuous current of 1.2 A. Its maximum DC resistance is specified at 72 mOhms. The unit operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Closed magnetic circuit construction minimizes electromagnetic interference.
• Ferrite core material ensures stable performance under varying conditions.
• Shielded design reduces noise coupling in dense PCB layouts.

Fixed Inductors Applications

• DC-DC converter output filtering
• Power supply input stages
• Portable electronic device power management

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct electrical characteristics and packaging configuration. Confirm that the component meets all required automotive or industrial qualification standards if applicable to the target application environment.

Fixed Inductors Selection Notes

Select this component when a compact 0805 footprint is required for power filtering applications. Ensure the design accounts for the 2 A saturation current limit to prevent performance degradation. Verify thermal management requirements given the operating temperature range up to 125°C.

Fixed Inductors Part Context

This part belongs to the AWVH series of shielded power inductors from Pulse Electronics. The series is characterized by high current handling capabilities and low DC resistance values suitable for modern power conversion topologies requiring small form factors.

Fixed Inductors Replacement Considerations

AWVH002016101R0MH1
