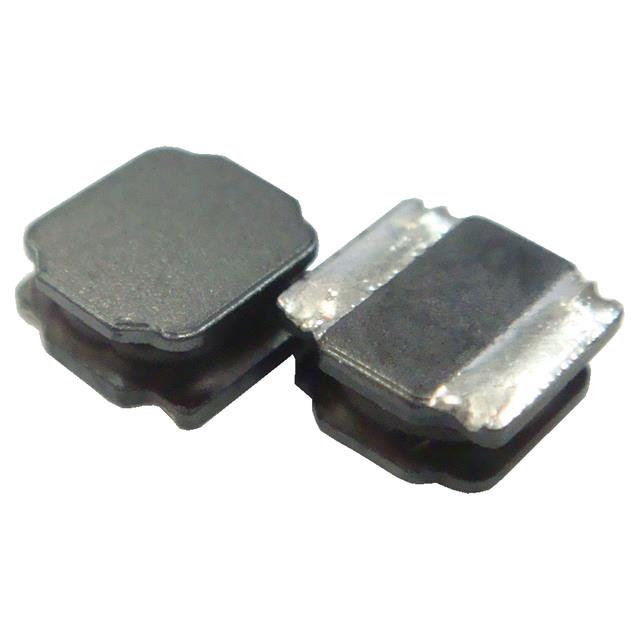

AWVS004040184R7T00 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is INDUCTOR POWER. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for AWVS004040184R7T00
- Description：INDUCTOR POWER
- Series：AWVS
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：Ferrite
- Inductance：4.7 µH
- Tolerance：±30%
- Current Rating (Amps)：1.5 A
- Current - Saturation (Isat)：1.8A
- Shielding：Shielded
- DC Resistance (DCR)：90mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：AEC-Q200
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：1616 (4040 Metric)
- Supplier Device Package：1616
- Size / Dimension：0.157" L x 0.157" W (4.00mm x 4.00mm)
- Height - Seated (Max)：0.079" (2.00mm)
- Features：-
Fixed Inductors datasheet and documents for AWVS004040184R7T00
Fixed Inductors Overview
The AWVS004040184R7T00 is a shielded surface-mount power inductor from Pulse Electronics, designed for automotive applications. It features a ferrite core and measures 4 mm x 4 mm x 1.8 mm. The component has an inductance of 4.7 µH with a 20% tolerance. It supports a saturation current of 6.5 A and a maximum DC current of 4.5 A. The maximum DC resistance is 36 mOhms. Operating temperatures range from -40°C to +125°C.
Fixed Inductors Feature Summary
- AEC-Q200 qualified for automotive reliability standards
- Shielded construction minimizes electromagnetic interference
- Compact 4 mm x 4 mm footprint suitable for space-constrained designs
Fixed Inductors Applications
- Automotive audio systems
- Mobile computing devices
- LCD displays
- Computer servers
- Networking and telecommunications equipment
Fixed Inductors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct electrical characteristics and packaging configuration. Confirm that the component meets AEC-Q200 requirements if intended for automotive use. Cross-reference the part number with authorized distributors to validate authenticity and availability status before procurement.
Fixed Inductors Selection Notes
Select this component when a compact, shielded inductor with high saturation current is required for automotive or industrial circuits. Ensure the 4.7 µH value aligns with circuit design specifications. Verify that the 1.8 mm height fits within mechanical constraints. Consider thermal management capabilities given the 125°C maximum operating temperature rating.
Fixed Inductors Part Context
This part belongs to Pulse Electronics' AWVS series of power inductors. The series offers various sizes and impedance values tailored for diverse electronic applications. The AWVS line emphasizes reliability and performance in demanding environments, particularly within the automotive sector where AEC-Q200 qualification is essential.
Fixed Inductors Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guide or contact technical support for verified alternatives.
