AWVS005050205R6T00

$0.18

Description：INDUCTOR POWER
Series：AWVS
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:5ea298b3075c Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

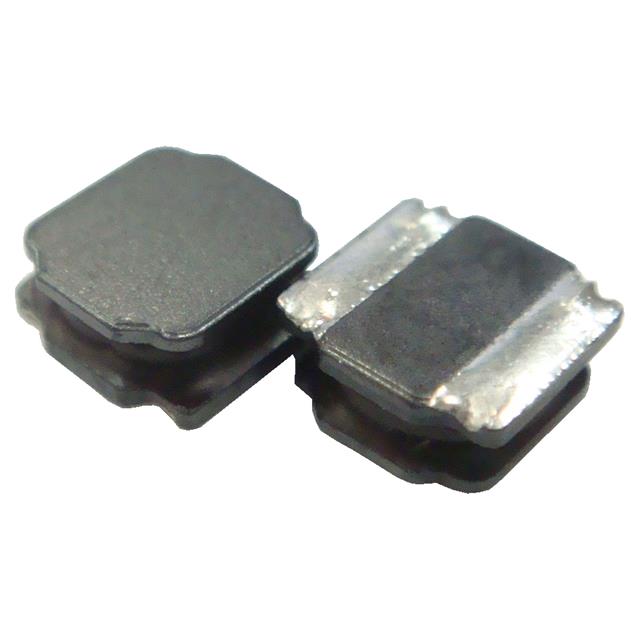

AWVS005050205R6T00 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is INDUCTOR POWER. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for AWVS005050205R6T00

Description：INDUCTOR POWER
Series：AWVS
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Type：-
Material - Core：Ferrite
Inductance：5.6 µH
Tolerance：±30%
Current Rating (Amps)：1.8 A
Current - Saturation (Isat)：1.8A
Shielding：Shielded
DC Resistance (DCR)：82mOhm
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：2020 (5050 Metric)
Supplier Device Package：2020
Size / Dimension：0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max)：0.087" (2.20mm)
Features：-

Fixed Inductors datasheet and documents for AWVS005050205R6T00

AWVS005050205R6T00

Fixed Inductors Overview

The AWVS005050205R6T00 is a shielded surface-mount power inductor from Pulse Electronics, designed for automotive applications. It features a ferrite core and measures 5 mm x 5 mm x 4 mm. The component has an inductance of 5.6 µH with a tolerance of ±20%. It supports a maximum DC current of 1.8 A and a saturation current of 1.8 A. The maximum DC resistance is 82 mOhms. It operates within a temperature range of -40°C to +125°C and holds AEC-Q200 qualification.

Fixed Inductors Feature Summary

AEC-Q200 qualified for automotive reliability standards
Shielded construction minimizes electromagnetic interference
Ferrite core material ensures stable performance

Fixed Inductors Applications

Automotive electronic systems
Power supply circuits
DC-DC converters

Fixed Inductors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical parameters and package dimensions. Ensure that the AEC-Q200 qualification status aligns with project requirements. Cross-reference datasheet specifications for thermal and current ratings before integration.

Fixed Inductors Selection Notes

Select this component for designs requiring automotive-grade reliability and compact SMD footprints. Consider the 5.6 µH value and 1.8 A current limits relative to circuit demands. Verify compatibility with automated assembly processes due to the standard SMD/SMT termination type.

Fixed Inductors Part Context

This part belongs to the AWVS series of power inductors from Pulse Electronics. The series offers various inductance values and sizes tailored for high-current applications. The AWVS designation indicates specific shielding and core characteristics distinct from other Pulse product lines.
