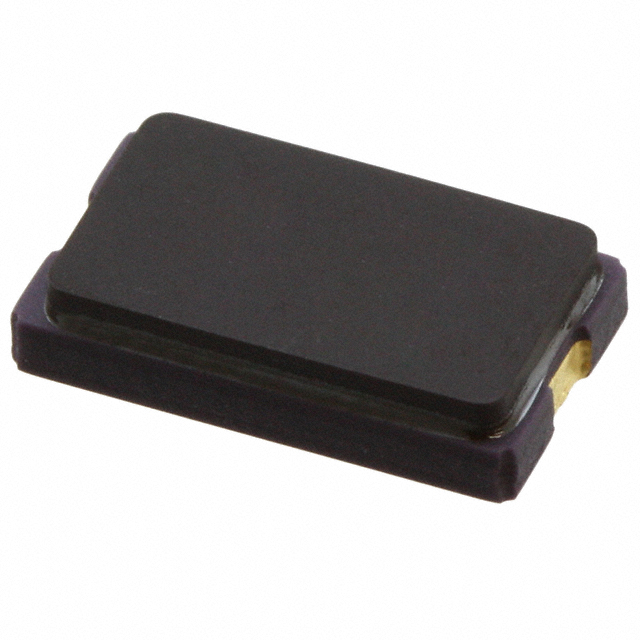

AX-10.000MAOY-T

Crystals Overview

The AX-10.000MAOY-T is a 10 MHz fundamental mode crystal resonator manufactured by TXC Corporation. It features a load capacitance of 7 pF and a frequency tolerance of ±30 ppm. The device utilizes glass sealing technology for environmental stability. It operates within a temperature range of -40°C to +105°C and has an equivalent series resistance (ESR) of 100 Ohms maximum. The component is housed in a compact 2-SMD, No Lead package with dimensions of 0.315 inches in length and 0.177 inches in width.

Crystals Feature Summary

• Glass sealed construction for enhanced environmental durability
• AEC-Q200 qualified for automotive reliability standards
• Compact surface-mount design suitable for space-constrained PCB layouts

Crystals Applications

• Automotive electronic systems requiring AEC-Q200 compliance
• General-purpose digital clock signal generation
• Microcontroller and processor timing circuits

Crystals Procurement Notes

Verify the specific ordering suffix and packaging configuration directly with the manufacturer or authorized distributors before purchase. Confirm that the requested quantity aligns with standard tape and reel shipping requirements. Ensure the application environment remains within the specified -40°C to +105°C operating temperature range to maintain the stated ±30 ppm frequency tolerance. Cross-reference the 7 pF load capacitance requirement with the target circuit design to ensure proper oscillator performance.

Crystals Selection Notes

Select this component when a fundamental mode crystal with glass sealing is required for automotive or industrial applications. The 7 pF load capacitance must match the oscillator circuit's external capacitor values. Consider the 100 Ohm ESR limit when designing the drive level constraints. The wide temperature range supports operation in harsh environments where standard commercial-grade crystals might fail.

Crystals Part Context

This part belongs to the TXC Corporation crystal resonator family, specifically designed for surface-mount assembly. It serves as a precise timekeeping element in digital circuits. The glass-sealed variant offers superior protection against moisture and contaminants compared to epoxy-sealed alternatives, ensuring long-term frequency stability in demanding operational conditions.

Crystals Replacement Considerations

Direct substitutes must match the 10 MHz frequency, 7 pF load capacitance, ±30 ppm tolerance, and 2-SMD footprint. Verify that any replacement also holds AEC-Q200 qualification if used in automotive contexts. Check equivalent series resistance and drive level specifications to ensure compatibility with the host oscillator circuit.
