AX-16.9344MAGV-T

Crystals Overview

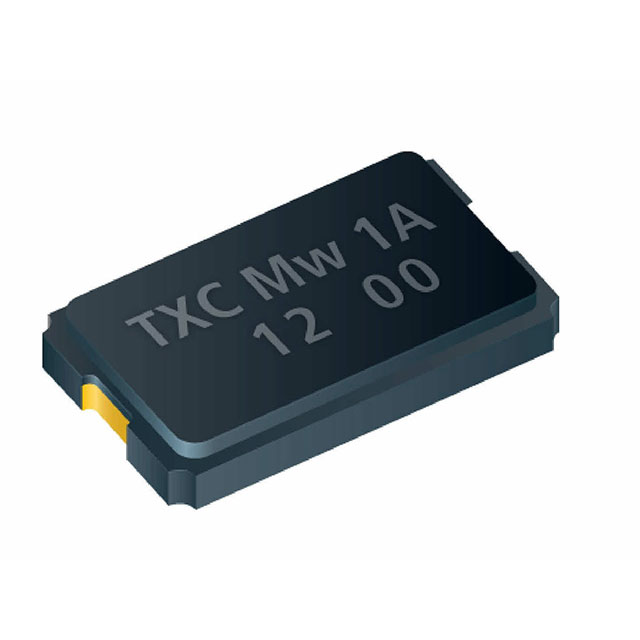

The AX-16.9344MAGV-T is a crystal oscillator manufactured by TXC Corporation, designed for surface-mount applications. It operates at a nominal frequency of 16.9344 MHz with a load capacitance of 8 pF and a frequency tolerance of ±30 ppm. The component features a 4-SMD, No Lead package configuration and supports an operating temperature range from -40°C to 85°C. This device provides stable timing signals suitable for electronic circuits requiring precise clock synchronization within the specified thermal environment.

Crystals Feature Summary

• Surface-mount design utilizing a 4-SMD, No Lead package structure
• Operates at a fixed frequency of 16.9344 MHz
• Maintains frequency stability within specified limits across industrial temperature ranges

Crystals Applications

• General-purpose timing circuits in consumer electronics
• Clock signal generation in embedded systems
• Communication module synchronization interfaces

Crystals Procurement Notes

Verify that the specific part number matches the required load capacitance and frequency tolerance for your circuit design. Confirm that the 4-SMD package dimensions are compatible with your PCB footprint. Ensure the operating temperature range meets the environmental requirements of the final application. Cross-reference official datasheets for detailed electrical characteristics before integration.

Crystals Selection Notes

Select this component when a 16.9344 MHz reference is required in a compact surface-mount form factor. Consider the 8 pF load capacitance requirement for proper oscillator circuit tuning. Evaluate the ±30 ppm tolerance against system jitter specifications. Verify compatibility with the target operating temperature range of -40°C to 85°C during the design phase.

Crystals Part Context

This crystal belongs to the broader family of TXC surface-mount crystals, which offer various frequencies and package options. The AX series typically denotes standard commercial or industrial grade components. Similar parts in the lineup may differ in frequency, package size, or stability specifications while maintaining comparable mounting styles.

Crystals Replacement Considerations

Direct substitutes must match the 16.9344 MHz frequency, 8 pF load capacitance, and 4-SMD package. Verify equivalent frequency tolerance and temperature range. Check pinout compatibility if alternative manufacturers are considered.
