AX-6.5536MAHE-T

Crystals Overview

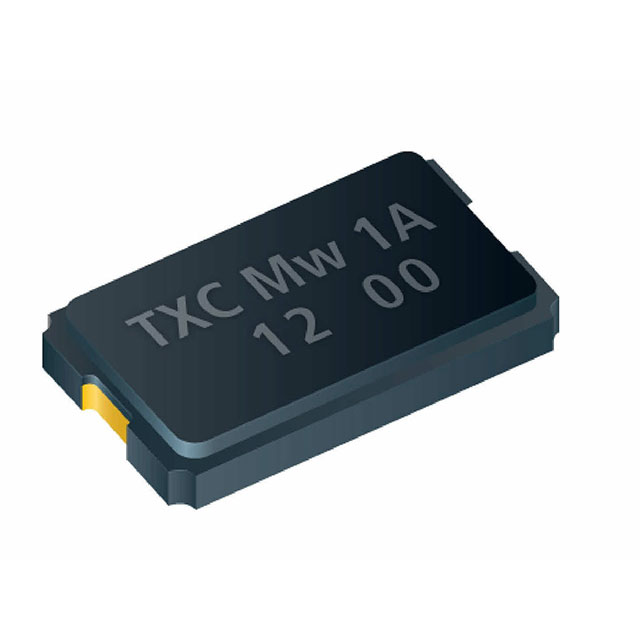

The AX-6.5536MAHE-T is a MHz quartz crystal manufactured by TXC Corporation, designed for automotive applications with AEC-Q200 certification. It operates at a fundamental frequency of 6.5536 MHz with a load capacitance of 12pF and an equivalent series resistance (ESR) of 150 Ohms. The component features a glass seal package in a 2-SMD, no lead configuration, measuring 8.0mm x 4.5mm. Frequency stability is maintained within ±30ppm at 25°C and across the industrial temperature range of -40°C to +85°C.

Crystals Feature Summary

• AEC-Q200 certified for automotive grade reliability
• Glass sealed construction for environmental protection
• Fundamental mode operation for precise timing

Crystals Applications

• Automotive electronic systems requiring certified timing components
• Clock generation circuits in vehicle control units
• Embedded systems operating in high-temperature environments

Crystals Procurement Notes

Verify the specific package dimensions and pin configuration against the official datasheet before integration. Confirm that the 150 Ohm ESR matches the oscillator circuit requirements. Ensure the supplier provides documentation confirming AEC-Q200 compliance for automotive qualification purposes.

Crystals Selection Notes

Select this component when automotive certification is mandatory and a 6.5536 MHz fundamental frequency is required. The 150 Ohm ESR suits specific oscillator topologies. Consider the larger 8.0x4.5mm footprint compared to standard SMD crystals during PCB layout planning.

Crystals Part Context

This part belongs to the TXC Corporation quartz crystal family, specifically tailored for automotive markets. It utilizes a glass seal technology distinct from ceramic packages, offering robust performance under thermal stress. The 6.5536 MHz frequency is commonly used in digital audio and communication interfaces.

Crystals Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
