AX5DBF2-122.8800C

Oscillators Overview

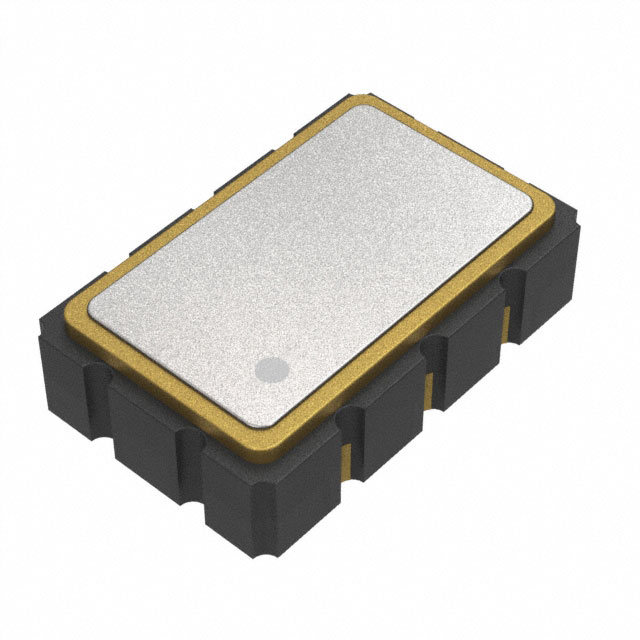

The Abracon AX5DBF2-122.8800C is a low-jitter crystal oscillator operating at 122.88 MHz with LVDS output format. It functions on a 2.5V supply voltage and features an 8-SMD package measuring 5x3.2 mm. The device provides frequency stability of ±25 ppm over the industrial temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Delivers low phase jitter performance suitable for high-speed digital interfaces
• Supports LVDS output signaling for noise immunity
• Operates on a single 2.5V power supply rail

Oscillators Applications

• High-speed serial data transmission systems
• Clock distribution networks in telecommunications equipment
• Test and measurement instrumentation requiring precise timing references

Oscillators Procurement Notes

Verify the specific output load requirements and supply voltage tolerance against your system design before ordering. Confirm that the 8-SMD 5x3.2 mm footprint matches your PCB layout constraints. Ensure the LVDS signal integrity specifications meet your receiver input thresholds. Cross-reference the ±25 ppm stability requirement with your application's clock budget to confirm suitability.

Oscillators Selection Notes

Select this component when a 122.88 MHz reference is required with LVDS outputs. Consider it for designs needing low jitter within the 5x3.2 mm form factor. Evaluate if the 2.5V supply aligns with your power architecture. Compare jitter metrics against other Abracon AX5 series variants if higher frequencies are needed.

Oscillators Part Context

This part belongs to the Abracon AX5 series of low-jitter oscillators designed for demanding applications. The series typically offers various output formats and frequencies. The DBF2 suffix indicates specific packaging and output characteristics within the lineup. It serves as a precision timing source for modern electronic systems requiring stable clock signals.

Oscillators Replacement Considerations

Check for direct pin-compatible substitutes within the AX5 series offering similar jitter specs. Verify if alternative frequencies like 125 MHz or 156.25 MHz fit your design flexibility. Ensure any replacement maintains the LVDS output type and 2.5V operation.
