AX5MBF3-425.0000C

Oscillators Overview

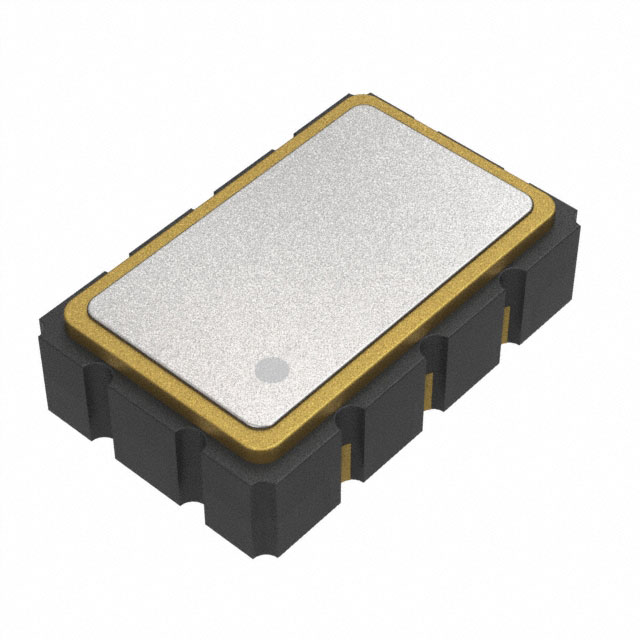

The Abracon AX5MBF3-425.0000C is a standard clock oscillator operating at 425 MHz with CML output format. It functions within a supply voltage range of 2.25 V to 2.75 V and maintains a frequency stability of ±25 ppm. The device utilizes an 8-SMD, no lead package measuring 5.0 mm x 3.2 mm. It supports enable/disable control and operates across a temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Provides high-frequency CML output signals for digital interfaces
• Includes enable and disable functionality for power management
• Delivers stable clock generation with specified frequency tolerance

Oscillators Applications

• High-speed data communication systems
• Digital signal processing circuits
• Network infrastructure equipment

Oscillators Procurement Notes

Verify the specific suffix 'C' against official Abracon documentation to confirm the exact pinout and electrical characteristics. Ensure the selected variant matches the required CML output format and voltage specifications for the target application design.

Oscillators Selection Notes

Select this component when a 425 MHz CML clock source is required. Confirm that the 2.25 V to 2.75 V supply range aligns with the system power architecture. Verify that the 8-SMD package dimensions fit the available PCB real estate.

Oscillators Part Context

This part belongs to the Abracon ClearClock series of standard oscillators. It is designed for applications requiring precise timing signals in compact surface-mount configurations. The series typically offers various frequency options and output formats to support diverse electronic designs.

Oscillators Replacement Considerations

Consult official Abracon substitution guides for compatible alternatives. Cross-reference parameters such as frequency, output type, and package size before selecting any substitute component.
