AX5PBF3-640.0000C

Oscillators Overview

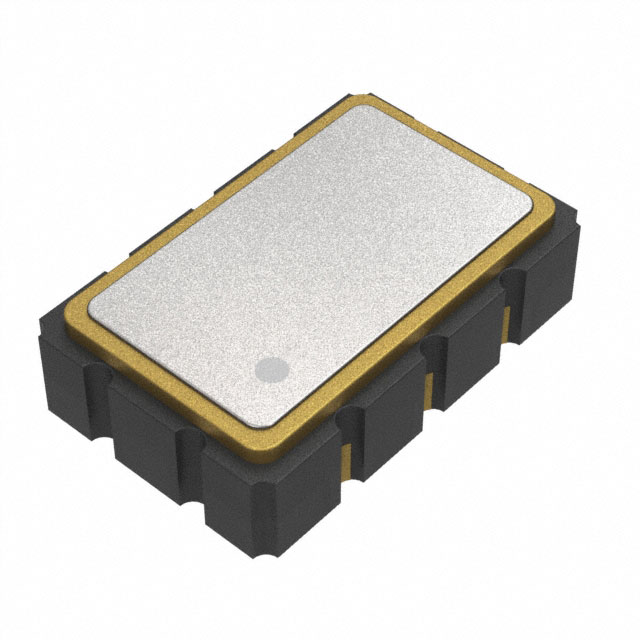

The Abracon AX5PBF3-640.0000C is a ClearClock series XO oscillator operating at 640 MHz. It utilizes LVPECL output logic and supports a 2.5V supply voltage with enable/disable functionality. The component is housed in an 8-SMD, no lead package.

Oscillators Feature Summary

• ClearClock programmable XO technology
• LVPECL output logic option
• Enable/Disable control capability

Oscillators Applications

• High-speed data communication systems
• Networking equipment clocking
• Test and measurement instrumentation

Oscillators Procurement Notes

Verify the specific suffix 'C' against the manufacturer datasheet to confirm tolerance and temperature range specifications. Ensure the LVPECL output type matches the receiving circuit requirements. Confirm the 8-SMD no lead package dimensions for PCB layout compatibility before ordering.

Oscillators Selection Notes

Select this model when a 640 MHz frequency is required with LVPECL outputs. Consider the 2.5V supply constraint and enable pin availability. Compare against other AX5 variants if different frequencies or output types like LVDS are needed.

Oscillators Part Context

Part of the ClearClock AX5 family, which offers programmable XO solutions. The series supports multiple output logic options including LVPECL, LVDS, HCSL, and CML. Designed for applications requiring precise timing signals in compact form factors.

Oscillators Replacement Considerations

Check for direct substitutes within the AX5 series offering identical 640 MHz frequency and LVPECL output. Verify package compatibility and electrical parameters such as supply voltage and enable functionality before substitution.
